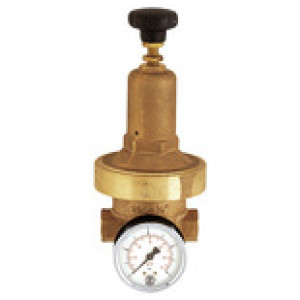

Tlačni regulator DRV 250, Low pressure design, G 3/8, 0.2-2 bar

SKU: 101435RIE
EAN: 4047322071017

Pressure regulator DRV 250, Low pressure design, non-reversible, incl. pressure gauge, G 3/8, Control range 0.2 - 2 bar

Diaphragm pressure regulators with non-self-relieving design and non-pressure-reduced single-seated valve. Very precise adjustment and good response characteristic because there are only a few moving parts and hence

minimal friction.

Ideal for compressed air, nitrogen and other neutral, non-flammable gases, but only suitable for liquids with comparatively low flow rates.

Čas dobave 3 - 5 dni
211,91 €
ali od 10,07 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,07 € x 24 mesecev
  • 19,32 € x 12 mesecev
  • 37,84 € x 6 mesecev
  • 74,90 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

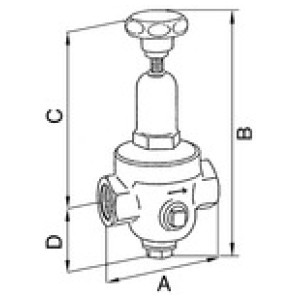

Šifra Navoj Pretok KVS vrednost [m³/h] DN D [mm] A [mm] C [mm] B [mm] Zaloga Cena Nakup Natisni
101434 G 1/4 0.5 8 45.5 70.0 140.0 185.5
Čas dobave 3 - 5 dni
211,91 € Natisni
101436 G 1/2 1.2 15 46.5 85.0 186.0 232.5
Čas dobave 3 - 5 dni
468,25 € Natisni
101435 G 3/8 0.6 10 45.5 70.0 140.0 185.5
Čas dobave 3 - 5 dni
211,91 € Natisni

Opis

Pressure regulator DRV 250, Low pressure design, non-reversible, incl. pressure gauge, G 3/8, Control range 0.2 - 2 bar

Diaphragm pressure regulators with non-self-relieving design and non-pressure-reduced single-seated valve. Very precise adjustment and good response characteristic because there are only a few moving parts and hence

minimal friction.

Ideal for compressed air, nitrogen and other neutral, non-flammable gases, but only suitable for liquids with comparatively low flow rates.

Tehnični podatki in specifikacije

Navoj G 3/8
Max. vhodni tlak [bar] 25
Max. temperaturno območje [°C] 75
Ohišje Red brass 2.1096.01
Tesnilo NBR
DN 10
Min. krmilno območje [bar] 0.2
Max. krmilno območje [bar] 2
Pretok KVS vrednost [m³/h] 0.6
Vzmet pokrova motorja Pressed brass
Razmerje zmanjšanja max. 20:1
A [mm] 70.0
B [mm] 185.5
C [mm] 140.0
D [mm] 45.5
