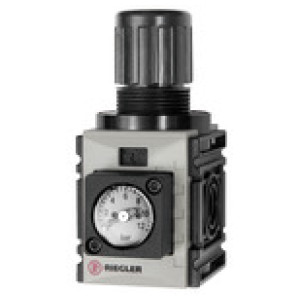

Tlačni regulator »FUTURA-mali«, kompaktni manometer, G 1/4
SKU: 142407RIE
EAN: 4047322556323
Pressure regulator continuous pressure supply »FUTURA-mini«, incl. compact press. gauge, Size 0, G 1/4, PE max. 12 bar, 0.5-10 bar
Diaphragm pressure regulators with self-relieving design and excellent flow rates
in modern design for mounting side by side.
By assembling two or more controllers together, it is possible to supply several working air circuits with different output pressures via a single supply line. The regulator button can be latched.
Šifra | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
142405RIE | 0.1 | 4 | 6 | Čas dobave: Predvidoma 3 - 5 dni | 45,32 € | | |
142406RIE | 0.5 | 8 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 45,32 € | | |
142407RIE | 0.5 | 10 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 45,32 € | |
Opis
Pressure regulator continuous pressure supply »FUTURA-mini«, incl. compact press. gauge, Size 0, G 1/4, PE max. 12 bar, 0.5-10 bar
Diaphragm pressure regulators with self-relieving design and excellent flow rates
in modern design for mounting side by side.
By assembling two or more controllers together, it is possible to supply several working air circuits with different output pressures via a single supply line. The regulator button can be latched.
Tehnični podatki in specifikacije
Navoj | G 1/4 |
Max. vhodni tlak [bar] | 12 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 50 |
Ohišje | PA66 GF60 |
Priključni navoj | Plastic |
Tesnilo | NBR |
Membrane | NBR |
Pretok [l/min] | 1000 |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 10 |
Zaslon manometra max. [bar] | 12 |

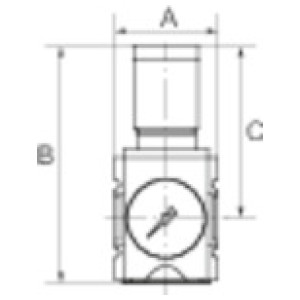

A [mm] | 43.0 |
B [mm] | 93.0 |
C [mm] | 68.0 |
Serija | FUTURA-mini |
Srednje | Compressed air, neutral gases |
Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
