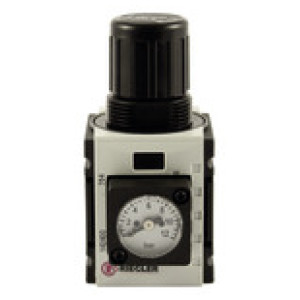

Tlačni regulator »FUTURA-mali«, kompaktni manometer, G 1/4
SKU: 142400RIE
EAN: 4047322555661
Pressure regulator »FUTURA-mini«, incl. compact pressure gauge, Size 0, G 1/4, Input pressure max. 12 bar, 0.5 - 8 bar

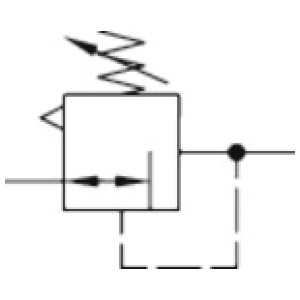

Diaphragm pressure regulators with self-relieving design and with excellent flow rates in modern design.
The regulator knob can be latched.
Čas dobave: Predvidoma 3 - 5 dni
43,25 €
| Šifra | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 142399RIE | 0.1 | 4 | 6 | Čas dobave: Predvidoma 3 - 5 dni | 43,25 € |  | |
| 142401RIE | 0.5 | 10 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 43,25 € | | |
| 142400RIE | 0.5 | 8 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 43,25 € | |
Opis
Pressure regulator »FUTURA-mini«, incl. compact pressure gauge, Size 0, G 1/4, Input pressure max. 12 bar, 0.5 - 8 bar
Diaphragm pressure regulators with self-relieving design and with excellent flow rates in modern design.
The regulator knob can be latched.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 12 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Plastic |
| Tesnilo | NBR |
| Membrane | NBR |
| Pretok [l/min] | 1000 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 8 |
| Zaslon manometra max. [bar] | 12 |

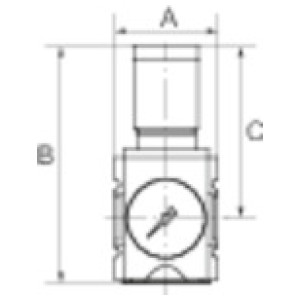

| A [mm] | 43.0 |
| B [mm] | 88.0 |
| C [mm] | 63.0 |
| Serija | FUTURA-mini |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
