Tlačni regulator »FUTURA«, Velikost 1, G 1/4, 0.5 - 16 bar
SKU: 100006RIE
EAN: 4047322190626

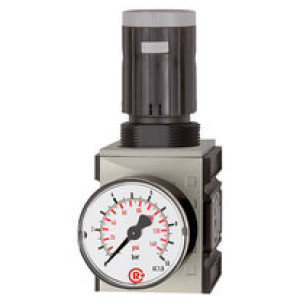

Pressure regulator »FUTURA«, incl. pressure gauge, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.5 - 16 bar
Diaphragm pressure regulators with self-relieving design and with excellent flow rates in modern design.

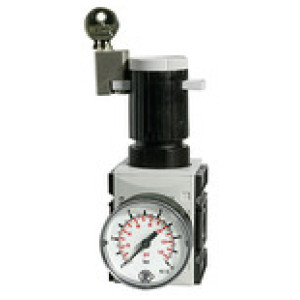

The regulator knob can be latched and locked.
Opis
Pressure regulator »FUTURA«, incl. pressure gauge, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.5 - 16 bar
Diaphragm pressure regulators with self-relieving design and with excellent flow rates in modern design.
The regulator knob can be latched and locked.
Tehnični podatki in specifikacije
Navoj | G 1/4 |
Max. vhodni tlak [bar] | 16 |
Velikost | 1 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 50 |
Ohišje | PA66 GF60 |
Priključni navoj | Material: Die-cast zinc |
Tesnilo | NBR |
Membrane | NBR |
Pretok [l/min] | 2000 |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 16 |
Zaslon manometra max. [bar] | 25 |

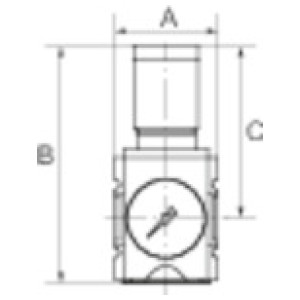

A [mm] | 52.0 |
B [mm] | 129.0 |
C [mm] | 96.0 |
Serija | FUTURA |
Srednje | Compressed air, neutral gases |
Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
