* slike so simbolične

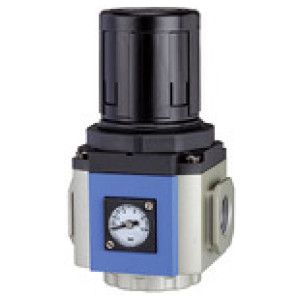

Tlačni regulator »G«, Velikost 400, G 3/8, 0.5 - 9 bar
SKU: 116463RIE
EAN: 4047322308304
Pressure regulator »G«, Pressure gauge, Mounting bracket, Size 400, G 3/8, Input pressure max. 10 bar, Control range 0.5 - 9 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the button down.
Čas dobave 3 - 5 dni
71,80 €
ali od 13,18 € / mesec
Izračunaj obrok
Obrestno financiranje
- 13,18 € x 6 mesecev
- 26,07 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

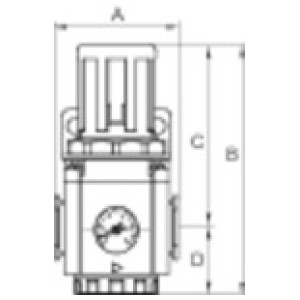

| Šifra | Navoj | D [mm] | A [mm] | C [mm] | B [mm] | Velikost | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 116463RIE | G 3/8 | 36.5 | 68.0 | 104.0 | 140.5 | 400 | 4000 | Čas dobave 3 - 5 dni | 71,80 € |  | |
| 116462RIE | G 1/2 | 29.0 | 51.0 | 83.5 | 112.5 | 300 | 2500 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 116458RIE | G 1/4 | 29.0 | 51.0 | 83.5 | 112.5 | 300 | 1650 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 116467RIE | G 1/2 | 36.5 | 68.0 | 104.0 | 140.5 | 400 | 4000 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 116468RIE | G 3/4 | 50.0 | 85.0 | 141.5 | 191.5 | 600 | 12000 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 116461RIE | G 3/8 | 29.0 | 51.0 | 83.5 | 112.5 | 300 | 2500 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 116471RIE | G 1 | 50.0 | 85.0 | 141.5 | 191.5 | 600 | 12000 | Čas dobave 3 - 5 dni | 107,93 € | |
Opis
Pressure regulator »G«, Pressure gauge, Mounting bracket, Size 400, G 3/8, Input pressure max. 10 bar, Control range 0.5 - 9 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 400 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 70 |
| Max. sobna temperatura [°C] | 70 |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 9 |
| Pretok [l/min] | 4000 |
| A [mm] | 68.0 |
| B [mm] | 140.5 |
| C [mm] | 104.0 |
| D [mm] | 36.5 |
| Serija | G |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
