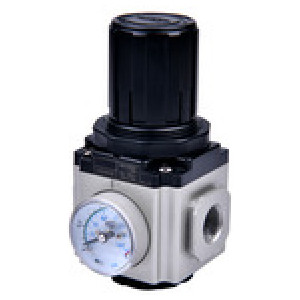

Tlačni regulator »GA-mali«, Velikost 200, G 1/4, 0.5 - 9 bar
SKU: 178354RIE
EAN: 4047322666251
Pressure regulator »GA-mini« pressure gauge, Mounting bracket, Size 200, G1/4, Input pressure max. 10 bar, Control range 0.5-9 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design. The pressure setting can be locked by pushing the button down.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Tlačni regulator »GA-mali«, Velikost 200, G 1/4, 0.5 - 9 bar
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/4
Ohišje: Die-cast aluminium
Serija: GA-mini
Navoj: G 1/4
Ohišje: Die-cast aluminium
Serija: GA-mini
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 178354RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 178353RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Pressure regulator »GA-mini« pressure gauge, Mounting bracket, Size 200, G1/4, Input pressure max. 10 bar, Control range 0.5-9 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design. The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 200 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 9 |
| Pretok [l/min] | 1400 |

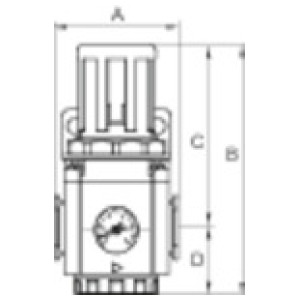

| A [mm] | 52.5 |
| B [mm] | 91.0 |
| C [mm] | 65.5 |
| D [mm] | 25.5 |
| Serija | GA-mini |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
