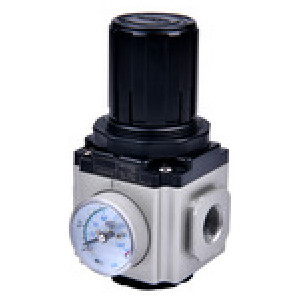

Tlačni regulator »GA«, Velikost 300, G 1/2, 0.5 - 9 bar
SKU: 178451RIE
EAN: 4047322666480
Pressure regulator »GA«, Pressure gauge, Mounting bracket, Size 300, G 1/2, Input pressure max. 10 bar, Control range 0.5 - 9 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design. The pressure setting can be locked by pushing the button down.
Čas dobave 3 - 5 dni
46,40 €
| Šifra | Navoj | Vzmet pokrova motorja | D [mm] | A [mm] | C [mm] | B [mm] | Velikost | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 178449RIE | G 1/4 | POM | 29.5 | 62.5 | 82.5 | 112.0 | 300 | 1400 | Čas dobave 3 - 5 dni | 46,40 € |  | |
| 178451RIE | G 1/2 | POM | 29.5 | 62.5 | 82.5 | 112.0 | 300 | 2000 | Čas dobave 3 - 5 dni | 46,40 € | | |
| 178454RIE | G 3/4 | Anodised aluminium | 50.5 | 100.0 | 129.0 | 179.5 | 600 | 6000 | Čas dobave 3 - 5 dni | 107,93 € | | |
| 178452RIE | G 3/8 | POM | 36.5 | 80.0 | 104.0 | 140.5 | 400 | 5000 | Čas dobave 3 - 5 dni | 71,80 € | | |
| 178450RIE | G 3/8 | POM | 29.5 | 62.5 | 82.5 | 112.0 | 300 | 2000 | Čas dobave 3 - 5 dni | 46,40 € | | |
| 178453RIE | G 1/2 | POM | 36.5 | 80.0 | 104.0 | 140.5 | 400 | 5000 | Čas dobave 3 - 5 dni | 71,80 € | | |
| 178455RIE | G 1 | Anodised aluminium | 50.5 | 100.0 | 129.0 | 179.5 | 600 | 6000 | Čas dobave 3 - 5 dni | 107,93 € | |
Opis
Pressure regulator »GA«, Pressure gauge, Mounting bracket, Size 300, G 1/2, Input pressure max. 10 bar, Control range 0.5 - 9 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design. The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 300 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 9 |
| Pretok [l/min] | 2000 |

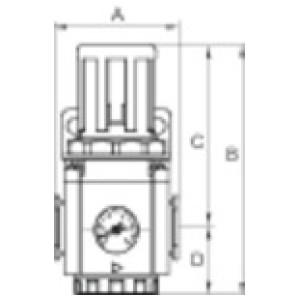

| A [mm] | 62.5 |
| B [mm] | 112.0 |
| C [mm] | 82.5 |
| D [mm] | 29.5 |
| Serija | GA |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
