* slike so simbolične

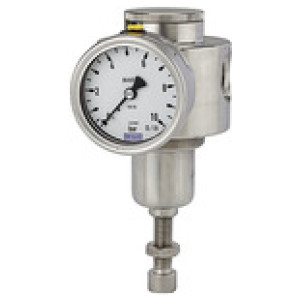

Tlačni regulator iz nerjevečega jekla, 1.4404, G 1/2, 0.5 - 8 bar
SKU: 101197RIE
EAN: 4047322101820
Stainless steel pressure regulator, 1.4404, without secondary venting (non-reversible), G 1/2, Control range 0.5 - 8 bar
Stainless steel regulators containing no non-ferrous metals for use in the food processing, chemical, mining,
plant construction and special machinery industries as well as in the medical technology.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Tlačni regulator iz nerjevečega jekla, 1.4404, G 1/2, 0.5 - 8 bar
Membrane: PTFE on NBR-carrier
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar
Navoj: G 1/2
Ohišje: Stainless steel 1.4404 (AISI 316L)
D [mm]: 127.0
B [mm]: 164.0
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar
Navoj: G 1/2
Ohišje: Stainless steel 1.4404 (AISI 316L)
D [mm]: 127.0
B [mm]: 164.0
Aktivni filtri - 0
| Šifra | Membrane | Merjenje pretoka | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | C [mm] | Max. vhodni tlak [bar] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101195RIE | PTFE on NBR-carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/4 | 0.5 | 8 | 37.0 | 30 | 64.0 | 122.0 | 160.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101196RIE | PTFE on NBR-carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/4 | 1 | 15 | 37.0 | 50 | 64.0 | 122.0 | 160.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101197RIE | PTFE on NBR-carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/2 | 0.5 | 8 | 37.0 | 30 | 80.0 | 127.0 | 164.0 | 660 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101198RIE | PTFE on NBR-carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/2 | 1 | 15 | 37.0 | 50 | 80.0 | 127.0 | 164.0 | 1800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 129272RIE | PTFE on NBR carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p ? 1 bar | G 1/2 | 0.5 | 8 | 39.0 | 50 | 109.0 | 121.0 | 160.0 | 2800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 129273RIE | PTFE on NBR carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p ? 1 bar | G 1/2 | 1 | 15 | 39.0 | 50 | 109.0 | 121.0 | 160.0 | 2800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 6 od 6 zapisov
Opis
Stainless steel pressure regulator, 1.4404, without secondary venting (non-reversible), G 1/2, Control range 0.5 - 8 bar
Stainless steel regulators containing no non-ferrous metals for use in the food processing, chemical, mining,
plant construction and special machinery industries as well as in the medical technology.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 30 |
| Ohišje | Stainless steel 1.4404 (AISI 316L) |
| Tesnilo | FKM |
| Membrane | PTFE on NBR-carrier |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 660 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 8 |

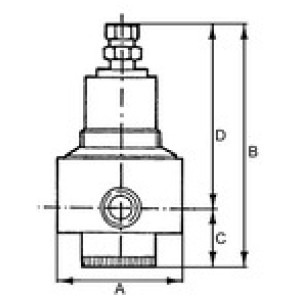

| A [mm] | 80.0 |
| B [mm] | 164.0 |
| C [mm] | 37.0 |
| D [mm] | 127.0 |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar |
