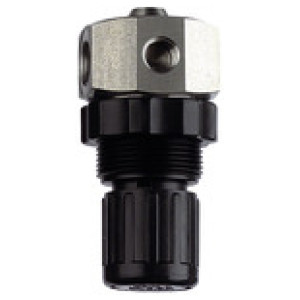

Tlačni regulator iz nerjevečega jekla, 1.4571, G 1/4, 0.1 - 2 bar
SKU: 101185RIE
EAN: 4047322118316
Stainless steel pressure regulator, 1.4571, for liquid media, without pressure gauge, G 1/4, Control range 0.1 - 2 bar
Diaphragm pressure regulators with non-self-relieving design.
The pressure setting can be locked by pushing the knob down.
Obrestno financiranje
- 12,11 € x 36 mesecev
- 17,40 € x 24 mesecev
- 33,31 € x 12 mesecev
- 65,16 € x 6 mesecev
- 128,88 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Tlačna vzmet | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
101187RIE | Stainless steel | 0.5 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 355,52 € | ||
101186RIE | Steel | 0.2 | 6 | Čas dobave: Predvidoma 3 - 5 dni | 355,52 € | ||
101185RIE | Steel | 0.1 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 355,52 € |
Opis
Stainless steel pressure regulator, 1.4571, for liquid media, without pressure gauge, G 1/4, Control range 0.1 - 2 bar
Diaphragm pressure regulators with non-self-relieving design.
The pressure setting can be locked by pushing the knob down.
Tehnični podatki in specifikacije
Navoj | G 1/4 |
Max. vhodni tlak [bar] | 25 |
Ohišje | Stainless steel V4A (1.4571) |
Tesnilo | FKM |
Membrane | FKM |
Max. temperatura medija [°C] | 80 |
Max. sobna temperatura [°C] | 80 |
Notranji deli | Stainless steel V4A (1.4571) |
Pretok [l/min] | 320 |
Min. krmilno območje [bar] | 0.1 |
Max. krmilno območje [bar] | 2 |

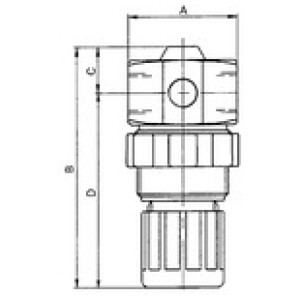

A [mm] | 36.0 |
B [mm] | 81.0 |
C [mm] | 16.0 |
D [mm] | 65.0 |
Tlačna vzmet | Steel |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
