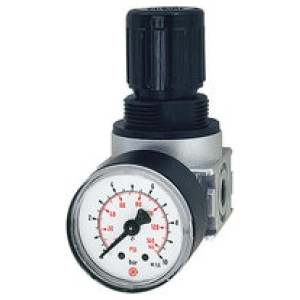

Tlačni regulator »multifix-mali«, Velikost 0, G 1/4, 0.1 - 3 bar slika
Tlačni regulator »multifix-mali«, Velikost 0, G 1/4, 0.1 - 3 bar slika
Tlačni regulator »multifix-mali«, Velikost 0, G 1/4, 0.1 - 3 bar slika

* slike so simbolične

Tlačni regulator »multifix-mali«, Velikost 0, G 1/4, 0.1 - 3 bar

SKU: 100348RIE
EAN: 4047322164795

Pressure regulator, continuous pressure supply »multifix-mini«, Size 0, G 1/4, Input pressure max. 16 bar, Control range 0.1-3 bar

Diaphragm pressure regulators with self-relieving design for mounting side by side.

The pressure setting can be locked by pushing the button down.

By assembling two or more controllers together, it is possible to supply several working air circuits with different output pressures via a single supply line.

Čas dobave: Predvidoma 3 - 5 dni
55,82 €
ali od 10,25 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,25 € x 6 mesecev
  • 20,27 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Min. krmilno območje [bar] Max. krmilno območje [bar] Zaslon manometra max. [bar] Zaloga Cena Nakup Natisni
100350RIE 0.5 10 16
Čas dobave: Predvidoma 3 - 5 dni
55,82 € Natisni
100348RIE 0.1 3 4
Čas dobave: Predvidoma 3 - 5 dni
55,82 € Natisni
100349RIE 0.2 6 10
Čas dobave: Predvidoma 3 - 5 dni
55,82 € Natisni

Opis

Pressure regulator, continuous pressure supply »multifix-mini«, Size 0, G 1/4, Input pressure max. 16 bar, Control range 0.1-3 bar

Diaphragm pressure regulators with self-relieving design for mounting side by side.

The pressure setting can be locked by pushing the button down.

By assembling two or more controllers together, it is possible to supply several working air circuits with different output pressures via a single supply line.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 16
Tesnilo NBR
Max. temperatura medija [°C] 60
Max. sobna temperatura [°C] 60
Vzmet pokrova motorja POM-brass
Pretok [l/min] 1700
Min. krmilno območje [bar] 0.1
Max. krmilno območje [bar] 3
Zaslon manometra max. [bar] 4
DN 5

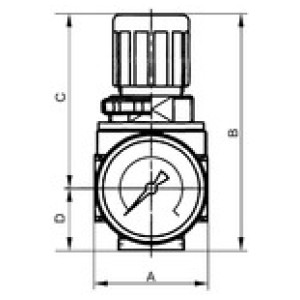

A [mm] 40.0
B [mm] 85.0
C [mm] 63.0
D [mm] 22.0
Ohišje Die-cast zinc
Serija multifix-mini
Merjenje pretoka At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar
