Tlačni regulator »multifix-mali«, Velikost 0, G 1/8, 0.2 - 6 bar
SKU: 100338RIE
EAN: 4047322163781
Pressure regulator »multifix-mini«, incl. pressure gauge, Size 0, G 1/8, Input pressure max. 16 bar, Control range 0.2 - 6 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the button down.
Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
100337RIE | G 1/8 | 0.1 | 3 | 4 | Čas dobave: Predvidoma 3 - 5 dni | 47,76 € | ||
100341RIE | G 1/4 | 0.1 | 3 | 4 | Čas dobave: Predvidoma 3 - 5 dni | 47,76 € | ||
100342RIE | G 1/4 | 0.2 | 6 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 47,76 € | ||
100339RIE | G 1/8 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 47,76 € | ||
100340RIE | G 1/8 | 0.5 | 16 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 47,76 € | ||
100343RIE | G 1/4 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 47,76 € | ||
100338RIE | G 1/8 | 0.2 | 6 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 47,76 € |
Opis
Pressure regulator »multifix-mini«, incl. pressure gauge, Size 0, G 1/8, Input pressure max. 16 bar, Control range 0.2 - 6 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
Navoj | G 1/8 |
Max. vhodni tlak [bar] | 16 |
Tesnilo | NBR |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Vzmet pokrova motorja | POM-brass |
Pretok [l/min] | 1450 |
Min. krmilno območje [bar] | 0.2 |
Max. krmilno območje [bar] | 6 |
Zaslon manometra max. [bar] | 10 |
DN | 5 |

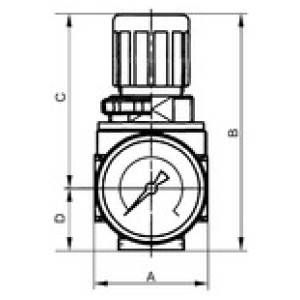

A [mm] | 40.0 |
B [mm] | 85.0 |
C [mm] | 63.0 |
D [mm] | 22.0 |
Ohišje | Die-cast zinc |
Serija | multifix-mini |
Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
