Tlačni regulator »multifix«, Velikost 1, G 1/4, 0.2 - 6 bar

SKU: 100449RIE
EAN: 4047322164894

Pressure regulator, continuous pressure supply »multifix«, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.2 - 6 bar

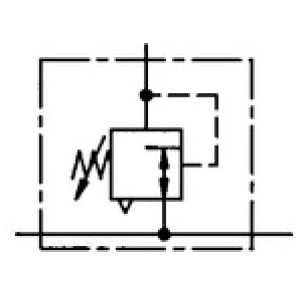

Diaphragm pressure regulators with self-relieving design for mounting side by side.

The pressure setting can be locked by pushing the button down.

By assembling two or more controllers together, it is possible to supply several working air circuits with different output pressures via a single supply line.

Čas dobave 3 - 5 dni
61,01 €
ali od 11,17 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 11,17 € x 6 mesecev
  • 22,08 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj Min. krmilno območje [bar] Velikost DN Max. krmilno območje [bar] Zaslon manometra max. [bar] D [mm] A [mm] C [mm] B [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
100450RIE G 1/4 0.5 1 6 10 16 27.8 47.8 67.0 94.8 2250
Čas dobave 3 - 5 dni
61,01 € Natisni
100452RIE G 1/2 0.2 3 15 6 10 35.1 68.8 99.0 134.1 8500
Čas dobave 3 - 5 dni
100,44 € Natisni
100451RIE G 1/2 0.1 3 15 3 4 35.1 68.8 99.0 134.1 8500
Čas dobave 3 - 5 dni
100,44 € Natisni
100448RIE G 1/4 0.1 1 6 3 4 27.8 47.8 67.0 94.8 2250
Čas dobave 3 - 5 dni
61,01 € Natisni
100453RIE G 1/2 0.5 3 15 10 16 35.1 68.8 99.0 134.1 8500
Čas dobave 3 - 5 dni
100,44 € Natisni
100449RIE G 1/4 0.2 1 6 6 10 27.8 47.8 67.0 94.8 2250
Čas dobave 3 - 5 dni
61,01 € Natisni

Opis

Pressure regulator, continuous pressure supply »multifix«, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.2 - 6 bar

Diaphragm pressure regulators with self-relieving design for mounting side by side.

The pressure setting can be locked by pushing the button down.

By assembling two or more controllers together, it is possible to supply several working air circuits with different output pressures via a single supply line.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 16
Velikost 1
Tesnilo NBR
Max. temperatura medija [°C] 60
Max. sobna temperatura [°C] 60
Vzmet pokrova motorja POM-brass
Pretok [l/min] 2250
Min. krmilno območje [bar] 0.2
Max. krmilno območje [bar] 6
Zaslon manometra max. [bar] 10
DN 6

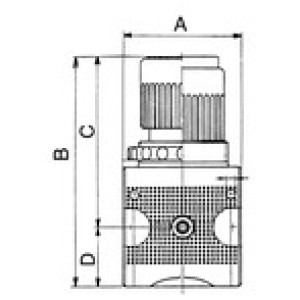

A [mm] 47.8
B [mm] 94.8
C [mm] 67.0
D [mm] 27.8
Ohišje Die-cast zinc
Serija multifix
Merjenje pretoka At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar
