* slike so simbolične

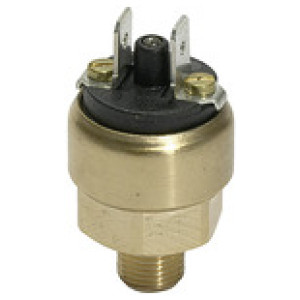

Tlačno stikalo malo, medenina, G 1/8, razpon 1-10 bar
SKU: 103015RIE
EAN: 4047322189873
Pressure switch mini design, Brass, 42 V, Ambient temperature -25 °C to 85 °C, G 1/8, Setting range 1 - 10 bar, NO contact
For liquid, non-corrosive and gaseous media. Easy to adjust, even under pressure.
Can be integrated in any mounting position. Pressure adjustment by means of a hexagon-head screw.
Na zalogi - preveri zalogo po poslovalnicah
Zaloga po poslovalnicah
- Ljubljana Na zalogi
- Maribor Na zalogi
27,56 €
| Šifra | Ffunkcija | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 103015RIE | NO | Na zalogi | 27,56 € |  | |
| 103016RIE | NC | Čas dobave 3 - 5 dni | 27,56 € | |
Opis
Pressure switch mini design, Brass, 42 V, Ambient temperature -25 °C to 85 °C, G 1/8, Setting range 1 - 10 bar, NO contact
For liquid, non-corrosive and gaseous media. Easy to adjust, even under pressure.
Can be integrated in any mounting position. Pressure adjustment by means of a hexagon-head screw.
Tehnični podatki in specifikacije
| Preklopna napetost | 42 V |
| Min. prilagoditveno območje [bar] | 1 |
| Max. območje nastavitve [bar] | 10 |
| Aplikacije | Air, hydraulic oil, oil emulsions, water |
| Preklopna frekvenca | 200/min |
| Material | Brass |
| Navoj | G 1/8 |

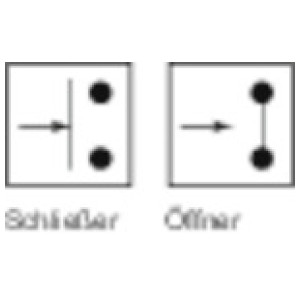

| Ffunkcija | NO |
| Vrsta gradnje | Spring-loaded diaphragm (NBR) |
| Max. sobna temperatura [°C] | 85 |
| Min. sobna temperatura [°C] | -25 |
| Električni priključek | Tab connectors 2 x 6.3 x 0.8 |
