Tlačno stikalo, polikarbonat, Čep M8, 4-pol, G 1/8 ET, M5 IT
SKU: 108432RIE
EAN: 4047322203999

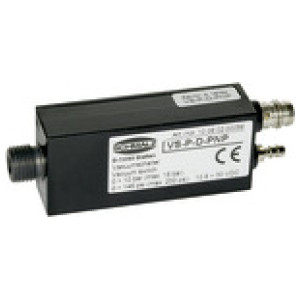

Pressure switch, Polycarbonate, Plug M8, 4-pole, G 1/8 ET, M5 IT, M8x1 ET, Temperature 0 °C to 50 °C, 10.8 - 30 V DC
Universal electronic pressure switch for safety monitoring, optimisation of cycle times and regulation circuits. Its small size and low weight permit installation in handling systems directly at the point of use.
Obrestno financiranje
- 11,88 € x 36 mesecev
- 17,06 € x 24 mesecev
- 32,66 € x 12 mesecev
- 63,88 € x 6 mesecev
- 126,35 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 108432RIE | Čas dobave: Predvidoma 3 - 5 dni | 348,70 € |  |
Opis
Pressure switch, Polycarbonate, Plug M8, 4-pole, G 1/8 ET, M5 IT, M8x1 ET, Temperature 0 °C to 50 °C, 10.8 - 30 V DC
Universal electronic pressure switch for safety monitoring, optimisation of cycle times and regulation circuits. Its small size and low weight permit installation in handling systems directly at the point of use.
Tehnični podatki in specifikacije
| Max. temperaturno območje [°C] | 50 |
| Ohišje | Polycarbonate |
| izhodni signal | 2 x digital |
| Preklopna zmogljivost | 180 mA |
| Izmerjena srednja povezava | G 1/8 ET and M5 IT |
| Trenutna poraba [mA] | 55 |
| Srednje | Non-aggressive gases, dry, oil-free air |
| histereza | Adjustable: 0 to 100 % of set value or comparator mode |
| Navedba | 2 x LED |
| Izpis izmerjene vrednosti | 3-digit 7-segment LED |
| Električni priključek | Male connector M8, four pin |
| Operativna napetost | 10.8 to 30 V DC |
| Merilno območje max. bar | 10 |
| Vrsta gradnje | PNP |

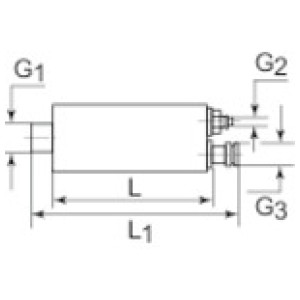

| L [mm] | 58.5 |
| L1 [mm] | 75.5 |
| G 1 | G 1/8 ET |
| G 2 | M5 IT |
| G 3 | M8x1 ET |
