Tlačno stikalo, specialna zlitina, G 1/4, 0.2 - 2 bar
SKU: 103030RIE
EAN: 4047322126434
Pressure switch, Electr. connection equipment plug A shape, Special die casting, Temperature -20 °C to 80 °C, G 1/4, 0.2 - 2 bar
For converting pneumatic to electrical signals.

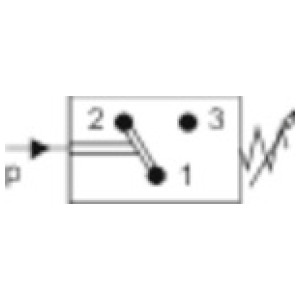

Designed for use in rough vacuum applications (technical vacuum). Universal switch type, suitable as NC, NO or changeover contact. These devices are free from paint-wetting impairment substances (PWIS).
Obrestno financiranje
- 13,00 € x 6 mesecev
- 25,71 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Min. prilagoditveno območje [bar] | Max. območje nastavitve [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 103031RIE | 0.5 | 8 | Čas dobave: Predvidoma 3 - 5 dni | 70,66 € |  | |
| 103032RIE | 1 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 70,66 € | | |
| 103030RIE | 0.2 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 70,66 € | |
Opis
Pressure switch, Electr. connection equipment plug A shape, Special die casting, Temperature -20 °C to 80 °C, G 1/4, 0.2 - 2 bar
For converting pneumatic to electrical signals.
Designed for use in rough vacuum applications (technical vacuum). Universal switch type, suitable as NC, NO or changeover contact. These devices are free from paint-wetting impairment substances (PWIS).
Tehnični podatki in specifikacije
| Ohišje | Special die-cast material |
| Preklopna napetost | 250 V AC / 28 V DC |
| Min. prilagoditveno območje [bar] | 0.2 |
| Max. območje nastavitve [bar] | 2 |
| Povezava | G 1/4 |
| Membrane | NBR |
| Gumb za prilagajanje | Aluminium, powder-coated |
| Tesnilo | NBR |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |

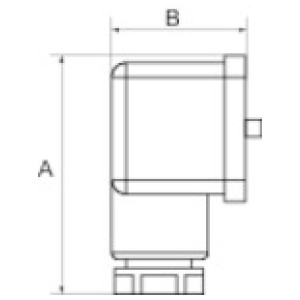

| A [mm] | 48.0 |
| B [mm] | 28.0 |
| IP zaščita | IP65 (DIN 43650), IP67 (M12x1) |
| Aplikacije | Pneumatic applications |
| Preklopna frekvenca | 200/min. |
