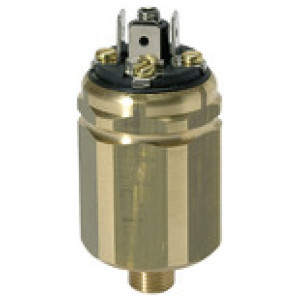

Tlačno stikalo za vakuum, medenina, G 1/8, razpon 20 - 800 mbar
SKU: 103011RIE
EAN: 4047322126106
Vacuum pressure switch, Brass, 42 V, Changeover contact, Ambient temp -25 °C to 85 °C, G 1/8, Setting range 20 - 800 mbar
For liquid, non-corrosive and gaseous media. Easy to adjust, even under pressure.
Can be integrated in any mounting position. Pressure adjustment by means of a hexagon-head screw.
Obrestno financiranje
- 18,47 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 103011RIE | Čas dobave: Predvidoma 3 - 5 dni | 50,89 € |  |
Opis
Vacuum pressure switch, Brass, 42 V, Changeover contact, Ambient temp -25 °C to 85 °C, G 1/8, Setting range 20 - 800 mbar
For liquid, non-corrosive and gaseous media. Easy to adjust, even under pressure.
Can be integrated in any mounting position. Pressure adjustment by means of a hexagon-head screw.
Tehnični podatki in specifikacije
| Preklopna napetost | 42 V |
| Aplikacije | Air, hydraulic oil, oil emulsions, water |
| Preklopna frekvenca | 200/min |
| Material | Brass |
| Navoj | G 1/8 |
| Ffunkcija | changeover contact |
| Vrsta gradnje | Spring-loaded diaphragm (NBR) |
| Max. sobna temperatura [°C] | 85 |
| Min. sobna temperatura [°C] | -25 |
| Električni priključek | Tab connectors 3 x 6.3 x 0.8 |
| Območje nastavitve | 20 - 800 mbar vacuum |
