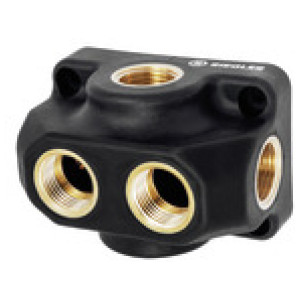

Universal distributor, Input/Output G1/2, Connection 6 x G1/2
SKU: 194135RIE
EAN: 4047322682718
Universal distributor, Input/Output G1/2, Connection 6 x G1/2, operat.pressure (air/water) max.15 bar, ambient temp. 1 °C to 50 °CMade of plastic PA6 GF 30.
End and through distributor sockets made of high strength, glass fibre reinforced plastic (PA6 GF 30) with large range of applications.
Optionally 1 or up to 3 connection options as well as 2 thread sizes for internal and external threads (cannot be combined). For vertical carrying of media.
Universal distributor socket with up to 6 connection options. Suitable for vertical and/or horizontal carrying of media or the secure connection (avoidance of existing components) of pressure reducer or maintenance device, for example.
All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape.
Suitable for media compressed air (ambient temperature -10 °C to 50 °C) or water (ambient temperature 1 °C to 50 °C). Drilling diagram dimensions
are identical for all distributor sockets, so a simpler and more flexible exchange between end, through and universal distributor sockets is ensured.
Caution:
Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.
Povpraševanje
Navoj skozi luknjo: G 1/2
Ohišje: Glass fibre-reinforced plastic PA6 GF 30
Priključni navoj: 6 x G 1/2
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 194135RIE | Ni na zalogi | ? | Povpraševanje |  |
Opis
Made of plastic PA6 GF 30.
End and through distributor sockets made of high strength, glass fibre reinforced plastic (PA6 GF 30) with large range of applications.
Optionally 1 or up to 3 connection options as well as 2 thread sizes for internal and external threads (cannot be combined). For vertical carrying of media.
Universal distributor socket with up to 6 connection options. Suitable for vertical and/or horizontal carrying of media or the secure connection (avoidance of existing components) of pressure reducer or maintenance device, for example.
All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape.
Suitable for media compressed air (ambient temperature -10 °C to 50 °C) or water (ambient temperature 1 °C to 50 °C). Drilling diagram dimensions
are identical for all distributor sockets, so a simpler and more flexible exchange between end, through and universal distributor sockets is ensured.
Caution:
Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | 1 |
| Max. obratovalni tlak [bar] | 15 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | Glass fibre-reinforced plastic PA6 GF 30 |
| Max. moment privijanja - medeninasta nit [Nm] | 12 |
| Max. moment privijanja - pritrdilne luknje [Nm] | 4 |
| Navoj skozi luknjo | G 1/2 |
| Dovodni navoj | G 1/2 |
| Priključni navoj | 6 x G 1/2 |
