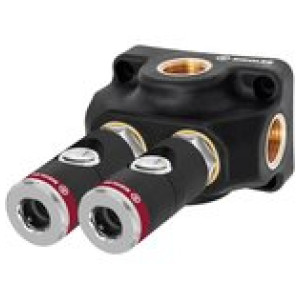

Universal junction socket, 2 safety couplings I.D.7.4, input G1/2
SKU: 205213RIE
EAN: 4047322706582
Universal junction socket, 2safety couplings I.D.7.4,inputG1/2,Op.pressure max.12bar,temp.air -10°C to 50°C,temp.water 1°C to 50°C
Do you like to use the devices more versatile instead of unilaterally? Universal distributor sockets support you in this.
- Vertical and horizontal use.
Connect workplaces of several levels over one another and next to one another. This directs your media in a direct path to the required delivery point.
- Safety via well thought out connection brackets.
The side connection is at a 90 ° angle. Mount your service units, consumers and pipes simply directly on the wall. Escape and transport routes remain clear.
- Flexible use.
The six connection options – 2 x front, 2 x side, 1 x above, 1 x below – offer the maximum flexibility of use.
- Available with or without couplings.
2 or 3-way distributor sockets made of high-strength glass fibre-reinforced plastic (PA6 GF 30) for a wide range of applications. All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape. Drilling diagram dimensions are identical for all distributor sockets, so a simpler and more flexible exchange replacement. Caution: Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.
Šifra | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|
205213RIE | Ni na zalogi | ? | Povpraševanje | |
Opis
Universal junction socket, 2safety couplings I.D.7.4,inputG1/2,Op.pressure max.12bar,temp.air -10°C to 50°C,temp.water 1°C to 50°C
Do you like to use the devices more versatile instead of unilaterally? Universal distributor sockets support you in this.
- Vertical and horizontal use.
Connect workplaces of several levels over one another and next to one another. This directs your media in a direct path to the required delivery point.
- Safety via well thought out connection brackets.
The side connection is at a 90 ° angle. Mount your service units, consumers and pipes simply directly on the wall. Escape and transport routes remain clear.
- Flexible use.
The six connection options – 2 x front, 2 x side, 1 x above, 1 x below – offer the maximum flexibility of use.
- Available with or without couplings.
2 or 3-way distributor sockets made of high-strength glass fibre-reinforced plastic (PA6 GF 30) for a wide range of applications. All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape. Drilling diagram dimensions are identical for all distributor sockets, so a simpler and more flexible exchange replacement. Caution: Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.
Tehnični podatki in specifikacije
Dovodni navoj | G 1/2 |
Max. obratovalni tlak [bar] | 12 |
Min. delovna temperatura v zraku [°C] | -10 |
Max. delovna temperatura v zraku [°C] | 50 |
Min. delovna temperatura v vodi [°C] | 1 |
Max. delovna temperatura v vodi [°C] | 50 |
Spojka | 2 x Safety coupling |
Max. moment privijanja - medeninasta nit [Nm] | 12 |
Max. moment privijanja - pritrdilne luknje [Nm] | 4 |
Ohišje | Glass fibre-reinforced plastic PA6 GF 30 |
Premer [mm] | 86.0 |
Višina [mm] | 60.0 |
