Vac.Tlačno stikalo,spec. zlitina,prirobnica,-0.85/-0,15bar slika
Vac.Tlačno stikalo,spec. zlitina,prirobnica,-0.85/-0,15bar slika
Vac.Tlačno stikalo,spec. zlitina,prirobnica,-0.85/-0,15bar slika

* slike so simbolične

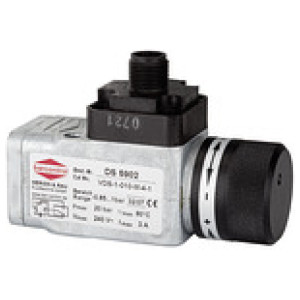

Vac.Tlačno stikalo,spec. zlitina,prirobnica,-0.85/-0,15bar

SKU: 103038RIE
EAN: 4047322212199

Vacuum pressure switch, Electrical connection M12x1, Special die casting,Temp. -20°C to 80°C, Flange,Setting range -0.85/-0.15 bar

For converting pneumatic to electrical signals.

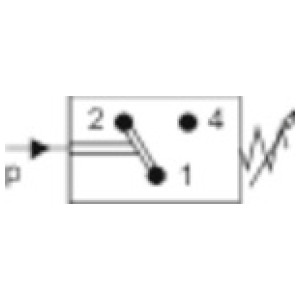

Designed for use in rough vacuum applications (technical vacuum). Universal switch type, suitable as NC, NO or changeover contact. These devices are free from paint-wetting impairment substances (PWIS).

Čas dobave: Predvidoma 3 - 5 dni
100,13 €
ali od 18,30 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 18,30 € x 6 mesecev
  • 36,20 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava Zaloga Cena Nakup Natisni
103038RIE Flange
Čas dobave: Predvidoma 3 - 5 dni
100,13 € Natisni
103039RIE G 1/4
Čas dobave: Predvidoma 3 - 5 dni
100,13 € Natisni

Opis

Vacuum pressure switch, Electrical connection M12x1, Special die casting,Temp. -20°C to 80°C, Flange,Setting range -0.85/-0.15 bar

For converting pneumatic to electrical signals.

Designed for use in rough vacuum applications (technical vacuum). Universal switch type, suitable as NC, NO or changeover contact. These devices are free from paint-wetting impairment substances (PWIS).

Tehnični podatki in specifikacije

Ohišje Special die-cast material
Preklopna napetost max. 250 V AC / 28 V DC
Povezava Flange
Membrane NBR
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 80

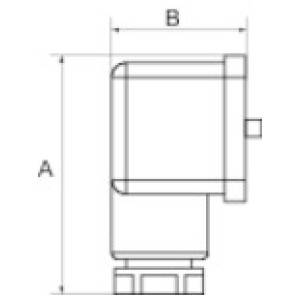

A [mm] 48.0
B [mm] 28.0
IP zaščita IP 65 (DIN 43650), IP 67 (M12x1)
Aplikacije Pneumatic applications
Preklopna frekvenca 1Hz
Območje nastavitve -0.85 / -0.15 bar
