* slike so simbolične

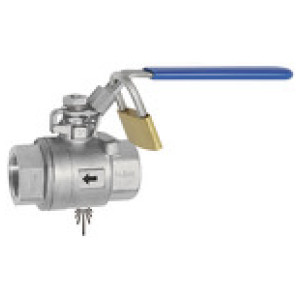

Varn krog. ventil ner.jeklo, z zaklepom, z izpustom, G 1/4
SKU: 151730RIE
EAN: 4047322594950
Stainless steel safety ball valve, lockable, Venting hole M5, Operating temp. -20 °C to 160 °C, G 1/4, DN 8, PN max. 17 bar
Stainless steel safety ball valves.
Specially designed for pneumatic applications.
The ball valve can be locked manually and has a relief port.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Varn krog. ventil ner.jeklo, z zaklepom, z izpustom, G 1/4
Bore diameter padlock: ca. 7.8 mm
Krogelno tesnilo: PTFE + PFA
Krogla: Stainless steel 1.4408
Navoj: G 1/4
Ohišje: Stainless steel 1.4408
Opomba: The images maybe different from the original part
Ročica: Stainless steel 1.4301, PVC coated
Standardni navoj: G thread acc. to DIN EN ISO 228-1
A [mm]: 103.9
Krogelno tesnilo: PTFE + PFA
Krogla: Stainless steel 1.4408
Navoj: G 1/4
Ohišje: Stainless steel 1.4408
Opomba: The images maybe different from the original part
Ročica: Stainless steel 1.4301, PVC coated
Standardni navoj: G thread acc. to DIN EN ISO 228-1
A [mm]: 103.9

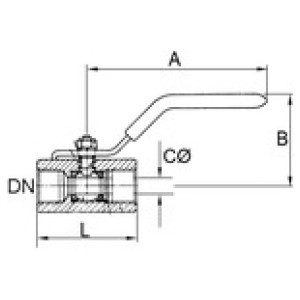

| Šifra | Navoj | C Ø [mm] | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 151732RIE | G 1/2 | 15.0 | 15 | 56.5 | 65.3 | 123.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 151731RIE | G 3/8 | 12.5 | 10 | 50.0 | 54.4 | 103.9 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 151734RIE | G 1 | 25.0 | 25 | 69.3 | 88.7 | 145.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 151733RIE | G 3/4 | 20.0 | 20 | 60.5 | 77.3 | 123.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 151730RIE | G 1/4 | 11.5 | 8 | 50.0 | 54.4 | 103.9 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Stainless steel safety ball valve, lockable, Venting hole M5, Operating temp. -20 °C to 160 °C, G 1/4, DN 8, PN max. 17 bar
Stainless steel safety ball valves.
Specially designed for pneumatic applications.
The ball valve can be locked manually and has a relief port.
Tehnični podatki in specifikacije
| Bore diameter padlock | ca. 7.8 mm |
| Max. obratovalni tlak [bar] | 17 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 160 |
| Krogelno tesnilo | PTFE + PFA |
| Krogla | Stainless steel 1.4408 |
| Ohišje | Stainless steel 1.4408 |
| Stebelno tesnilo | PTFE |
| Ročica | Stainless steel 1.4301, PVC coated |
| Navoj | G 1/4 |
| Izpušni vtič | M5 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| DN | 8 |
| A [mm] | 103.9 |
| L [mm] | 54.4 |
| B [mm] | 50.0 |
| Opomba | The images maybe different from the original part |
| C Ø [mm] | 11.5 |
