Varn krog. ventil z vzmetnim povratkom, nikljana med., 1/2

SKU: 103229RIE
EAN: 4047322370042

Safety ball valve with spring reset, nickel-plated brass, Operating temperature -40 °C to 170 °C, Rp 1/2, DN 15, PN max. 65 bar

"

2/2-way safety ball valves, two parts, made of nickel-plated brass with spring return.

The ball valve is closed in the normal position and opens against spring force. High safety standard because the valve is automatically closed if the handle is not operated

Čas dobave: Predvidoma 3 - 5 dni
66,31 €
ali od 12,08 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 12,08 € x 6 mesecev
  • 23,89 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

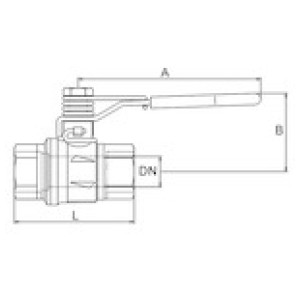

Šifra Navoj DN B [mm] L [mm] PN [bar] A [mm] Zaloga Cena Nakup Natisni
103227RIE Rp 1/4 8 40.0 50.0 65 100.0
Čas dobave: Predvidoma 3 - 5 dni
66,31 € Natisni
103230RIE Rp 3/4 20 51.0 80.0 65 120.0
Čas dobave: Predvidoma 3 - 5 dni
86,68 € Natisni
103232RIE Rp 1 1/4 32 75.0 110.0 40 158.0
Čas dobave: Predvidoma 3 - 5 dni
191,66 € Natisni
103228RIE Rp 3/8 10 40.0 60.0 65 100.0
Čas dobave: Predvidoma 3 - 5 dni
66,31 € Natisni
103234RIE Rp 2 50 88.0 140.0 40 158.0
Čas dobave: Predvidoma 3 - 5 dni
394,52 € Natisni
103231RIE Rp 1 25 55.0 90.0 65 120.0
Čas dobave: Predvidoma 3 - 5 dni
128,45 € Natisni
103233RIE Rp 1 1/2 40 81.0 120.0 40 158.0
Čas dobave: Predvidoma 3 - 5 dni
259,19 € Natisni
103229RIE Rp 1/2 15 43.0 75.0 65 100.0
Čas dobave: Predvidoma 3 - 5 dni
66,31 € Natisni

Opis

Safety ball valve with spring reset, nickel-plated brass, Operating temperature -40 °C to 170 °C, Rp 1/2, DN 15, PN max. 65 bar

"

2/2-way safety ball valves, two parts, made of nickel-plated brass with spring return.

The ball valve is closed in the normal position and opens against spring force. High safety standard because the valve is automatically closed if the handle is not operated

Tehnični podatki in specifikacije

Min. delovna temperatura [°C] -40
Max. delovna temperatura [°C] 170
Krogelno tesnilo PTFE
Krogla Chrome-plated brass
Ohišje Nickel-plated brass
Stebelno tesnilo FKM
Ročica Steel - PVC coated
Vzmet Stainless steel 1.4301
Material navojev Nickel-plated brass
Navoj Rp 1/2
Standardni navoj Rp thread acc. to ISO 7-1
DN 15
A [mm] 100.0
L [mm] 75.0
B [mm] 43.0
PN [bar] 65
