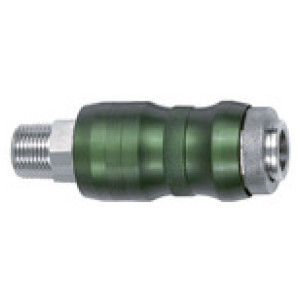

Varnosta spojka z Z.N. I.D. 7.8Bi-Tec pocinkana Med.,R 3/8 Z.N.
SKU: 134075RIE
EAN: 4047322483711
Safety coupling I.D. 7.8, Bi-Tec type, nickel-plated brass, R 3/8 ET, Operating pressure max. 20 bar, Temp. -20 °C to 100 °C
Safety air relief couplings for gaseous media.
Combination of a sliding valve and a quick disconnect coupling.
Connection is pressureless. Only a low spring force has to be overcome. Pressure only builds up when the green sleeve is pushed forward. It is impossible to disconnect the hose either intentionally or inadvertently in this position. When the sliding sleeve is moved back into its home position, the air is relieved from the hose and the coupling can be disconnected.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive.
Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
134076RIE | R 1/2 ET | 22 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | 48,93 € | | |
134074RIE | R 1/4 ET | 19 | 80.0 | Čas dobave: Predvidoma 3 - 5 dni | 48,28 € | | |
134075RIE | R 3/8 ET | 19 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 48,65 € | |
Opis
Safety coupling I.D. 7.8, Bi-Tec type, nickel-plated brass, R 3/8 ET, Operating pressure max. 20 bar, Temp. -20 °C to 100 °C
Safety air relief couplings for gaseous media.
Combination of a sliding valve and a quick disconnect coupling.
Connection is pressureless. Only a low spring force has to be overcome. Pressure only builds up when the green sleeve is pushed forward. It is impossible to disconnect the hose either intentionally or inadvertently in this position. When the sliding sleeve is moved back into its home position, the air is relieved from the hose and the coupling can be disconnected.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive.
Tehnični podatki in specifikacije
DN | 7.8 |
Max. obratovalni tlak [bar] | 20 |
Povezava | R 3/8 ET |
a/f [mm] | 19 |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
Ohišje | Nickel-plated brass |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Pretok | 2050 l/min (air) |
Krogla | Stainless steel |
Vzmet | Stainless steel |
Telo ventila | Nickel-plated brass |
Rokav | Anodised aluminium |
Sprostitveni rokav | Hardened, nickel-plated steel |
Dolžina [mm] | 81.0 |
