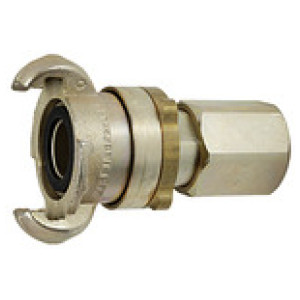

Varnostna čeljustna spojka z notranjim navojem, G 1/2, DN 17
SKU: 107880RIE
EAN: 4047322260091
Safety jaw coupling with interior thread, G 1/2, DN 17, Malleable cast iron, Operating pressure max. 16 bar, Temp. -40°C to 95°C
Universal standard coupling in safety design according to DIN 3238 for absolutely secure compressed air lines on construction sites or in industry.
Easy to couple, secured against accidental opening: just screw the ring tight after coupling!
- Robust couplings with malleable iron head, steel stem with special profile,
zinc plated and yellow chromated
- Chrome VI-free, with double safety lock
- Large bore for increased flow rate
| Šifra | Navoj | DN | a/f [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107880RIE | G 1/2 | 17 | 24 | 60.7 | Čas dobave: Predvidoma 3 - 5 dni | 33,51 € |  | |
| 107881RIE | G 3/4 | 17 | 32 | 90.2 | Čas dobave: Predvidoma 3 - 5 dni | 38,98 € | | |
| 107882RIE | G 1 | 17 | 41 | 92.2 | Čas dobave: Predvidoma 3 - 5 dni | 41,08 € | | |
| 107879RIE | G 3/8 | 13 | 24 | 61.7 | Čas dobave: Predvidoma 3 - 5 dni | 33,51 € | |
Opis
Safety jaw coupling with interior thread, G 1/2, DN 17, Malleable cast iron, Operating pressure max. 16 bar, Temp. -40°C to 95°C
Universal standard coupling in safety design according to DIN 3238 for absolutely secure compressed air lines on construction sites or in industry.
Easy to couple, secured against accidental opening: just screw the ring tight after coupling!
- Robust couplings with malleable iron head, steel stem with special profile,
zinc plated and yellow chromated
- Chrome VI-free, with double safety lock
- Large bore for increased flow rate
Tehnični podatki in specifikacije
| DN | 17 |
| Max. obratovalni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Navoj | G 1/2 |
| a/f [mm] | 24 |
| Tesnilo | NBR |
| Material | Malleable iron |
| Razdalja med objemkami [mm] | 42 |
| L [mm] | 60.7 |
| H [mm] | 63.0 |
