Varnostna vrtljiva spojka I.D.6, ISO 6150 C,G3/8 Z.N.,rumena

• Različice (8)
• Opis
• Tehnični podatki
• Prenosi
• Mnenja strank

Filtri so bili resetirani

Šifra	Barva	Povezava	Zaloga	Cena	Nakup	Natisni
141876RIE	Gray	G 3/8 ET	Čas dobave: Predvidoma 3 - 5 dni	Povpraševanje	Povpraševanje
141862RIE	Yellow	G 1/4 ET	Čas dobave: Predvidoma 3 - 5 dni	Povpraševanje	Povpraševanje
141850RIE	Red	G 3/8 ET	Čas dobave: Predvidoma 3 - 5 dni	Povpraševanje	Povpraševanje
141875RIE	Gray	G 1/4 ET	Čas dobave: Predvidoma 3 - 5 dni	Povpraševanje	Povpraševanje
141849RIE	Red	G 1/4 ET	Čas dobave: Predvidoma 3 - 5 dni	Povpraševanje	Povpraševanje
141863RIE	Yellow	G 3/8 ET	Čas dobave: Predvidoma 3 - 5 dni	Povpraševanje	Povpraševanje
141888RIE	Blue	G 1/4 ET	Čas dobave: Predvidoma 3 - 5 dni	Povpraševanje	Povpraševanje
141889RIE	Blue	G 3/8 ET	Čas dobave: Predvidoma 3 - 5 dni	Povpraševanje	Povpraševanje

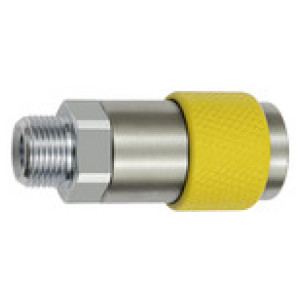

Captive swivel safety coupling I.D. 6, ISO 6150 C, Steel, 2-stage, G 3/8 ET, yellow, max. 25 bar, Temp. -15 °C to 200 °C

High quality, robust and long lifetime one-hand rotation secure coupling.

A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch.

The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve. The colour and shape coding of the coupling and plug-in nipple makes it possible only to couple to the same colours.

This coupling meets ISO standard DIN EN ISO 4414, EN 983.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
