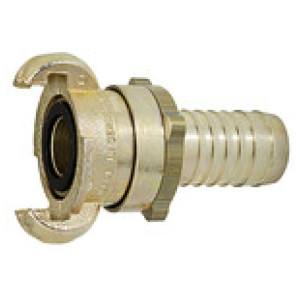

Varnostne Čeljustna spojka s cevnim priklj. I.D. 19 (3/4")DN 15
SKU: 107884RIE
EAN: 4047322260138
Safety jaw coupling with hose connection, I.D. 19 (3/4"), DN 15, Malleable cast iron, Operating pressure max. 16 bar
Universal standard coupling in safety design according to DIN 3238 for absolutely secure compressed air lines on construction sites or in industry.
Easy to couple, secured against accidental opening: just screw the ring tight after coupling!
- Robust couplings with malleable iron head, steel stem with special profile,
zinc plated and yellow chromated
- Chrome VI-free, with double safety lock
- Large bore for increased flow rate
| Šifra | Za cev I.D. | DN | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107885RIE | "25 (1"")" | 19 | 86.6 | Čas dobave: Predvidoma 3 - 5 dni | 27,17 € |  | |
| 107883RIE | "13 (1/2"")" | 10 | 87.2 | Čas dobave: Predvidoma 3 - 5 dni | 27,17 € | | |
| 107884RIE | "19 (3/4"")" | 15 | 88.7 | Čas dobave: Predvidoma 3 - 5 dni | 27,17 € | |
Opis
Safety jaw coupling with hose connection, I.D. 19 (3/4"), DN 15, Malleable cast iron, Operating pressure max. 16 bar
Universal standard coupling in safety design according to DIN 3238 for absolutely secure compressed air lines on construction sites or in industry.
Easy to couple, secured against accidental opening: just screw the ring tight after coupling!
- Robust couplings with malleable iron head, steel stem with special profile,
zinc plated and yellow chromated
- Chrome VI-free, with double safety lock
- Large bore for increased flow rate
Tehnični podatki in specifikacije
| DN | 15 |
| Max. obratovalni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Tesnilo | NBR |
| Material | Malleable iron |
| Razdalja med objemkami [mm] | 42 |
| Za cev I.D. | "19 (3/4"")" |
| L [mm] | 88.7 |
| H [mm] | 63.0 |
