Varnostni krogelni ventil, z zaklepom, z izpustom, Rp 3/4
SKU: 103152RIE
EAN: 4047322366212
Safety ball valve, lockable, Venting hole M5, nickel-plated brass, Operating temp. -10 °C to 100 °C, Rp 3/4, DN 20, PN max. 14 bar
Safety ball valves, two parts, made of nickel-plated brass.
Specially designed for pneumatic applications.
The valve shuts off the supply line and bleds the application area.
Lockable hand lever in closed position ensures a high protection against manipulation.
Povpraševanje
Krogla: Chrome-plated brass
Material navojev: Nickel-plated brass
Navoj: Rp 3/4
Ohišje: Nickel-plated brass
Ročica: Steel - PVC coated
Standardni navoj: Rp thread acc. to EN 10226

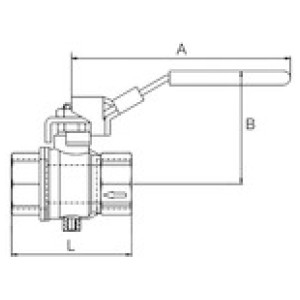

A [mm]: 117.0
| Šifra | Izpušni vtič | Navoj | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103151RIE | M5 | Rp 1/2 | 15 | 51.0 | 59.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103154RIE | G 1/4 | Rp 1 1/4 | 32 | 80.0 | 93.0 | 157.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103150RIE | M5 | Rp 3/8 | 10 | 49.0 | 45.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103149RIE | M5 | Rp 1/4 | 8 | 49.0 | 45.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103152RIE | M5 | Rp 3/4 | 20 | 60.0 | 64.0 | 117.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103156RIE | G 1/4 | Rp 2 | 50 | 93.0 | 121.0 | 157.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103153RIE | M5 | Rp 1 | 25 | 64.0 | 81.0 | 117.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103155RIE | G 1/4 | Rp 1 1/2 | 40 | 86.0 | 102.0 | 157.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Safety ball valve, lockable, Venting hole M5, nickel-plated brass, Operating temp. -10 °C to 100 °C, Rp 3/4, DN 20, PN max. 14 bar
Safety ball valves, two parts, made of nickel-plated brass.
Specially designed for pneumatic applications.
The valve shuts off the supply line and bleds the application area.
Lockable hand lever in closed position ensures a high protection against manipulation.
Tehnični podatki in specifikacije
| Bore diameter padlock | ca. 7.3 mm |
| Max. obratovalni tlak [bar] | 14 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 100 |
| Krogelno tesnilo | PTFE |
| Krogla | Chrome-plated brass |
| Ohišje | Nickel-plated brass |
| Stebelno tesnilo | FKM |
| Ročica | Steel - PVC coated |
| Material navojev | Nickel-plated brass |
| Navoj | Rp 3/4 |
| Izpušni vtič | M5 |
| Standardni navoj | Rp thread acc. to EN 10226 |
| DN | 20 |
| A [mm] | 117.0 |
| L [mm] | 64.0 |
| B [mm] | 60.0 |
