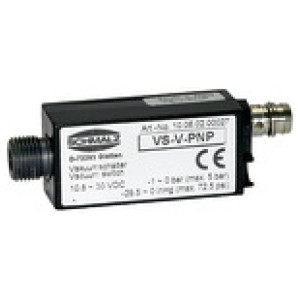

Vekumsko stikalo, polikarbonat, Čep M8, 4-pol, G 1/8 ET, M5 IT
SKU: 108431RIE
EAN: 4047322201247
Vacuum switch, Polycarbonate, Plug M8, 4-pole, G 1/8 ET, M5 IT, M8x1 ET, Temperature 0 °C to 50 °C, 10.8 - 30 V DC
Universal electronic vacuum switch for safety monitoring, optimisation of cycle times and regulation circuits. Its small size and low weight permit installation directly on the suction pad. Switching point and hysteresis adjustable with a screw. Integrated LED for indication of the switching state.
Obrestno financiranje
- 10,36 € x 24 mesecev
- 19,84 € x 12 mesecev
- 38,81 € x 6 mesecev
- 76,75 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 108431RIE | Čas dobave: Predvidoma 3 - 5 dni | 211,69 € |  |
Opis
Vacuum switch, Polycarbonate, Plug M8, 4-pole, G 1/8 ET, M5 IT, M8x1 ET, Temperature 0 °C to 50 °C, 10.8 - 30 V DC
Universal electronic vacuum switch for safety monitoring, optimisation of cycle times and regulation circuits. Its small size and low weight permit installation directly on the suction pad. Switching point and hysteresis adjustable with a screw. Integrated LED for indication of the switching state.
Tehnični podatki in specifikacije
| Max. temperaturno območje [°C] | 50 |
| Ohišje | Polycarbonate |
| Preklopna funkcija | PNP |
| izhodni signal | Analogue: 1 to 5 V |
| Preklopna zmogljivost | 125 mA |
| Izmerjena srednja povezava | G 1/8 ET and M5 IT |
| Trenutna poraba [mA] | 30 |
| Srednje | Non-aggressive gases, dry, oil-free air |
| histereza | Adjustable: 3 % to 25 % of set value |
| Električni priključek | Male connector M8, four pin |
| Operativna napetost | 10.8 to 30 V DC |
| Merilno območje min. bar | -1 |

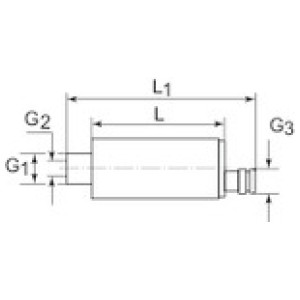

| L [mm] | 44.0 |
| L1 [mm] | 62.0 |
| G 1 | G 1/8 ET |
| G 2 | M5 IT |
| G 3 | M8x1 ET |
