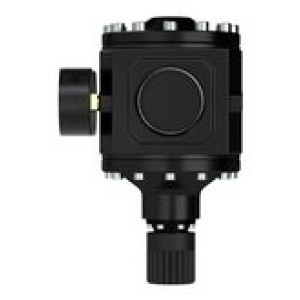

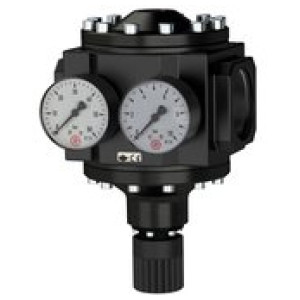

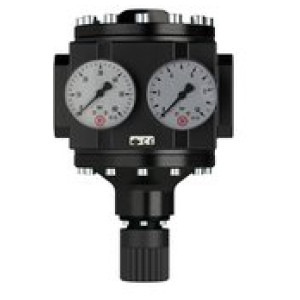

Veliki Tlačni regulator, 2 manometra, G 1 1/2, 0.5-10 bar
SKU: 101137RIE
EAN: 4047322108782
Large pressure regulator with 2 pressure gauges for inlet and outlet pressures, G 1 1/2, Control range 0.5 - 10 bar

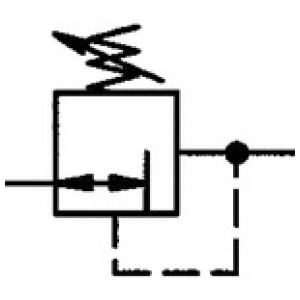

Diaphragm pressure regulators, independent of inlet pressure, with internal pilot control and self-relieving design.
Separate indication of input and working pressure on two pressure gauges.
The pressure setting can be locked by pushing the button down.
Opis
Large pressure regulator with 2 pressure gauges for inlet and outlet pressures, G 1 1/2, Control range 0.5 - 10 bar
Diaphragm pressure regulators, independent of inlet pressure, with internal pilot control and self-relieving design.
Separate indication of input and working pressure on two pressure gauges.
The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
Navoj | G 1 1/2 |
Max. vhodni tlak [bar] | 40 |
Ohišje | Aluminium |
Tesnilo | NBR |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 90 |
DN | 50 |
Pretok | 48000 l/min |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 10 |

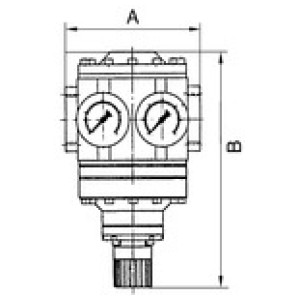

A [mm] | 180.0 |
B [mm] | 246.0 |
Merjenje pretoka | At P1 = 10 bar, P2 = 8 bar and pressure drop Δp = 1 bar |
