Ventil za zmanj. tlakaG 1/4 i. / o.,Nastavitveni tlak 2 bara
SKU: 101509RIE
EAN: 4047322386715

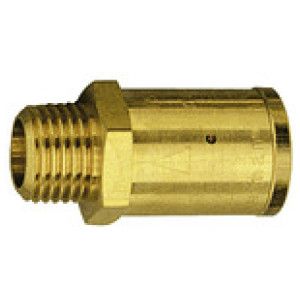

Pressure reducing valve, G 1/4 interior / exterior, AF 17, Set pressure 2 bar, Input pressure max. 15 bar, Material: Brass
Industry, trade and repair shops often require working pressures of 15 bar or less.
These pressure reducing valves, which are screwed directly onto the tool, enable that the pressure can be reduced to the selected working pressure.
Benefits:
- Significantly reduced risk of accidents
- Longer tool life with fewer malfunctions
- Lower noise levels at the workplace
| Šifra | Nastavitev tlaka [bar] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 101511RIE | 4 | 380 | Čas dobave: Predvidoma 3 - 5 dni | 14,99 € |  | |
| 101514RIE | 7 | 415 | Čas dobave: Predvidoma 3 - 5 dni | 20,39 € | | |
| 101515RIE | 8 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 21,78 € | | |
| 101510RIE | 3 | 360 | Čas dobave: Predvidoma 3 - 5 dni | 14,99 € | | |
| 101512RIE | 5 | 390 | Čas dobave: Predvidoma 3 - 5 dni | 14,99 € | | |
| 101513RIE | 6 | 405 | Čas dobave: Predvidoma 3 - 5 dni | 14,99 € | | |
| 101509RIE | 2 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 15,45 € | |
Opis
Pressure reducing valve, G 1/4 interior / exterior, AF 17, Set pressure 2 bar, Input pressure max. 15 bar, Material: Brass
Industry, trade and repair shops often require working pressures of 15 bar or less.
These pressure reducing valves, which are screwed directly onto the tool, enable that the pressure can be reduced to the selected working pressure.
Benefits:
- Significantly reduced risk of accidents
- Longer tool life with fewer malfunctions
- Lower noise levels at the workplace
Tehnični podatki in specifikacije
| Ohišje | Brass |
| Max. vhodni tlak [bar] | 15 |
| Priključni navoj | G 1/4 female / male |
| Pretok [l/min] | 300 |
| a/f [mm] | 17 |
| Nastavitev tlaka [bar] | 2 |

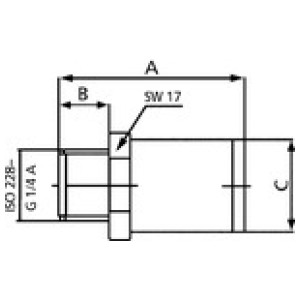

| A [mm] | 34.0 |
| B [mm] | 9.0 |
| C Ø [mm] | 17.0 |
