* slike so simbolične

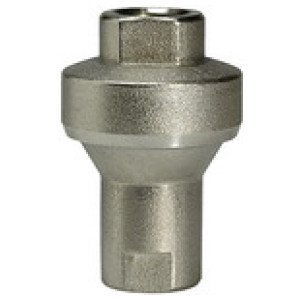

Vgrajeni regulator tlaka za vodo / zrak, G 1/4, pre-set 5 bar
SKU: 150634RIE
EAN: 4047322588287
Inline pressure regulator for water / compressed air applications, without venting, G 1/4, AF 17, Working pressure (pre-set) 5 bar
This regulator is designed as a single-acting diaphragm regulator for installation in any pipe system. It supplies a precise output value regardless of the input pressure.
Since the pressure is preset in the factory and cannot be altered, the product is also tamper-proof.
The regulator protects all downstream devices and components in the pipeline by maintaining a required constant pressure and preventing system pressure fluctuations. In combination with a nozzle, it is ideally suited for cooling or cleaning with water spray or mist.
Povpraševanje
Merjenje pretoka: At P1 = 10 bar and pressure drop Δp = 0.8 bar (air)
Navoj: G 1/4
Notranji deli: G 1/4
Ohišje: Nickel-plated brass
Serija: inline
| Šifra | Delovni tlak (prednastavitev) [bar] | Volumski pretok (zrak) [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 101502RIE | 1 | 400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 150637RIE | 8 | 800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101504RIE | 3 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101505RIE | 4 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 150636RIE | 7 | 800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101503RIE | 2 | 600 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 150635RIE | 6 | 800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 150634RIE | 5 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Inline pressure regulator for water / compressed air applications, without venting, G 1/4, AF 17, Working pressure (pre-set) 5 bar
This regulator is designed as a single-acting diaphragm regulator for installation in any pipe system. It supplies a precise output value regardless of the input pressure.
Since the pressure is preset in the factory and cannot be altered, the product is also tamper-proof.
The regulator protects all downstream devices and components in the pipeline by maintaining a required constant pressure and preventing system pressure fluctuations. In combination with a nozzle, it is ideally suited for cooling or cleaning with water spray or mist.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Volumski pretok (zrak) [l/min] | 700 |
| Volumski pretok (voda) [l/min] | 10 |
| Delovni tlak | max. 10 bar (water) / 18 bar (compressed air) |
| Max. temperaturno območje [°C] | 60 |
| Ohišje | Nickel-plated brass |
| Tesnilo | NBR |
| Delovni tlak (prednastavitev) [bar] | 5 |
| Notranji deli | G 1/4 |

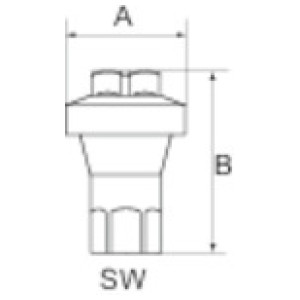

| A [mm] | 34.0 |
| B [mm] | 52.0 |
| Serija | inline |
| Merjenje pretoka | At P1 = 10 bar and pressure drop Δp = 0.8 bar (air) |
| a/f [mm] | 17 |
