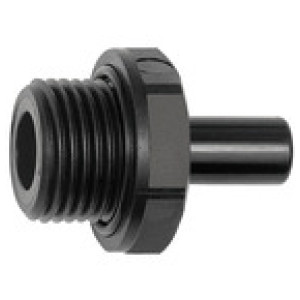

Vijačna vtičnica POM, G 3/8 za cev zunanji Ø 12 mm
SKU: 136505RIE
EAN: 4047322506045
Screw-in support POM, G 3/8, for hose exterior Ø 12 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Šifra | Navoj | Za cevi O.D. [mm] | Max. delovni tlak [bar] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
136499RIE | G 1/4 | 5 | 16 | 17 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,42 € | ||
136495RIE | G 1/8 | 5 | 16 | 14 | 25.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,78 € | ||
136497RIE | G 1/8 | 8 | 16 | 17 | 28.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,59 € | ||
136498RIE | G 1/4 | 4 | 16 | 17 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,78 € | ||
136512RIE | G 3/4 | 22 | 10 | 37 | 69.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,28 € | ||
136503RIE | G 3/8 | 8 | 16 | 22 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,49 € | ||
136511RIE | G 1/2 | 22 | 10 | 27 | 74.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,69 € | ||
136494RIE | G 1/8 | 4 | 16 | 14 | 25.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,78 € | ||
136507RIE | G 1/2 | 10 | 10 | 27 | 38.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,00 € | ||
136500RIE | G 1/4 | 6 | 16 | 17 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,45 € | ||
136496RIE | G 1/8 | 6 | 16 | 15 | 27.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,42 € | ||
136501RIE | G 1/4 | 8 | 16 | 17 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,78 € | ||
136509RIE | G 1/2 | 15 | 10 | 27 | 57.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,29 € | ||
136506RIE | G 3/8 | 15 | 10 | 22 | 54.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,15 € | ||
136510RIE | G 1/2 | 18 | 10 | 27 | 64.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,55 € | ||
136504RIE | G 3/8 | 10 | 10 | 22 | 35.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,53 € | ||
136508RIE | G 1/2 | 12 | 10 | 27 | 43.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,12 € | ||
136502RIE | G 1/4 | 10 | 10 | 20 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,62 € | ||
136505RIE | G 3/8 | 12 | 10 | 24 | 40.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,23 € |
Opis
Screw-in support POM, G 3/8, for hose exterior Ø 12 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Min. delovna temperatura v zraku [°C] | -20 |
Max. delovna temperatura v zraku [°C] | 65 |
Min. delovna temperatura v vodi [°C] | 1 |
Max. delovna temperatura v vodi [°C] | 70 |
Navoj | G 3/8 |
Za cevi O.D. [mm] | 12 |

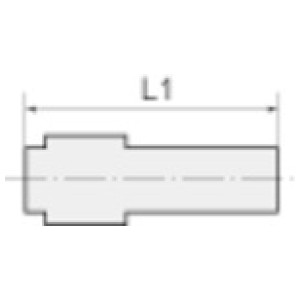

L1 [mm] | 40.5 |
a/f [mm] | 24 |
Material | Acetal polymer (POM) |
