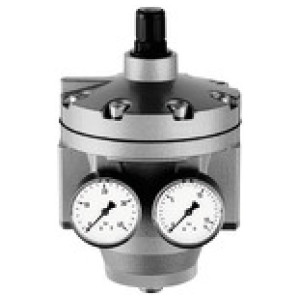

Visoko zmogljiv tlačni regulator, G 1 1/2, 0.1 - 3 bar
SKU: 101259RIE
EAN: 4047322107655
High performance pressure regulator with 2 pressure gauges, G 1 1/2, Control range 0.1 - 3 bar, Input pressure max. 25 bar
Diaphragm pressure regulators, independent of inlet pressure, with internal pilot control and self-relieving design
for very high flow rates.
Separate indication of input and working pressure on two pressure gauges.
The pressure setting can be locked by pushing the knob down.
Povpraševanje
Navoj: G 1 1/2
Ohišje: Aluminium, painted silver

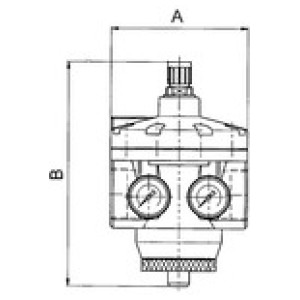

A [mm]: 188.0
B [mm]: 261.0
Pretok: 50000 l/min
| Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 101261RIE | G 1 1/2 | 0.5 | 10 | 16 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101260RIE | G 1 1/2 | 0.2 | 6 | 10 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101264RIE | G 2 | 0.2 | 6 | 10 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101259RIE | G 1 1/2 | 0.1 | 3 | 4 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101266RIE | G 2 | 0.5 | 16 | 25 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101263RIE | G 2 | 0.1 | 3 | 4 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101262RIE | G 1 1/2 | 0.5 | 16 | 25 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101265RIE | G 2 | 0.5 | 10 | 16 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
High performance pressure regulator with 2 pressure gauges, G 1 1/2, Control range 0.1 - 3 bar, Input pressure max. 25 bar
Diaphragm pressure regulators, independent of inlet pressure, with internal pilot control and self-relieving design
for very high flow rates.
Separate indication of input and working pressure on two pressure gauges.
The pressure setting can be locked by pushing the knob down.
Tehnični podatki in specifikacije
| Navoj | G 1 1/2 |
| Max. vhodni tlak [bar] | 25 |
| Ohišje | Aluminium, painted silver |
| Tesnilo | NBR |
| DN | 50 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok | 50000 l/min |
| Min. krmilno območje [bar] | 0.1 |
| Max. krmilno območje [bar] | 3 |
| Zaslon manometra max. [bar] | 4 |
| A [mm] | 188.0 |
| B [mm] | 261.0 |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
