* slike so simbolične
Visoko zmogljivi Glušnik, G 3/4, Vhodni tlak maks. 6 bar
SKU: 113296RIE
EAN: 4047322101691

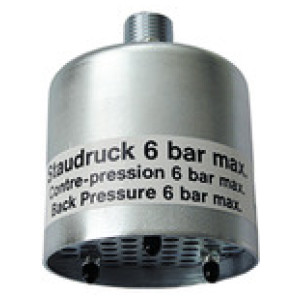

High performance silencer, G 3/4, Supply pressure max. 6 bar, Operating temperature -10 °C to 90 °C
Multi-chamber silencers with a high blow-off rate, short exhaust time and
excellent silencing effect.
Obrestno financiranje
- 16,11 € x 6 mesecev
- 31,86 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | A [mm] | C [mm] | B [mm] | Pretok pri 6 bar [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
113300RIE | G 2 | 24.0 | 150.0 | 168.0 | 56700 | Čas dobave: Predvidoma 3 - 5 dni | 227,88 € | ||
113297RIE | G 1 | 18.0 | 110.0 | 130.0 | 23350 | Čas dobave: Predvidoma 3 - 5 dni | 126,39 € | ||
113295RIE | G 1/2 | 14.0 | 80.0 | 103.0 | 13350 | Čas dobave: Predvidoma 3 - 5 dni | 77,84 € | ||
113298RIE | G 1 1/4 | 20.0 | 110.0 | 136.0 | 31700 | Čas dobave: Predvidoma 3 - 5 dni | 136,02 € | ||
113299RIE | G 1 1/2 | 24.0 | 150.0 | 168.0 | 53400 | Čas dobave: Predvidoma 3 - 5 dni | 215,70 € | ||
113296RIE | G 3/4 | 16.0 | 80.0 | 106.0 | 16700 | Čas dobave: Predvidoma 3 - 5 dni | 87,55 € |
Opis
High performance silencer, G 3/4, Supply pressure max. 6 bar, Operating temperature -10 °C to 90 °C
Multi-chamber silencers with a high blow-off rate, short exhaust time and
excellent silencing effect.
Tehnični podatki in specifikacije
Vgradni položaj | Any |
Max. vhodni tlak [bar] | 6 |
Min. delovna temperatura [°C] | -10 |
Max. delovna temperatura [°C] | 90 |
Ohišje | Galvanized steel housing |
Material | Perforated sheet galvanized steel, polyester felt discs |
Navoj | G 3/4 |

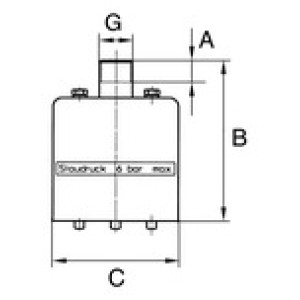

A [mm] | 16.0 |
B [mm] | 106.0 |
C [mm] | 80.0 |
Pretok pri 6 bar [l/min] | 16700 |
