Vitel za gibko cev, mobilno uporabo, PU cev fi 12x8, G 3/8

SKU: 113977RIE
EAN: 4047322287203

Hose reel, Mobile use, PU hose ø 12x8, Operating temperature -10 °C to 40 °C, PN max. 10 bar, G 3/8, Hose length 50 m

Specially designed for mobile applications.

This 50 m long polyurethane hose is mounted in a portable four-wheel cart made from blue anodised steel.

An automatic latching mechanism allows the hose to be engaged at any length. Enclosed spring.

Precise locking device for continuous feeding or latching mechanism. Reel guide prevents excessive wear on the hose.

Čas dobave 3 - 5 dni
1.212,47 €
ali od 28,75 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 100 € + 28,75 € x 48 mesecev
  • 100 € + 36,82 € x 36 mesecev
  • 100 € + 53,03 € x 24 mesecev
  • 100 € + 101,75 € x 12 mesecev
  • 100 € + 199,27 € x 6 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
113977
Čas dobave 3 - 5 dni
1.212,47 € Natisni

Opis

Hose reel, Mobile use, PU hose ø 12x8, Operating temperature -10 °C to 40 °C, PN max. 10 bar, G 3/8, Hose length 50 m

Specially designed for mobile applications.

This 50 m long polyurethane hose is mounted in a portable four-wheel cart made from blue anodised steel.

An automatic latching mechanism allows the hose to be engaged at any length. Enclosed spring.

Precise locking device for continuous feeding or latching mechanism. Reel guide prevents excessive wear on the hose.

Tehnični podatki in specifikacije

Material cevi Polyurethane
Max. obratovalni tlak [bar] 10
Min. delovna temperatura [°C] -10
Max. delovna temperatura [°C] 40
Priključni navoj Coupling G 3/8
Navoj, vhod Hose stem 8 mm
Dolžina cevi [m] 50

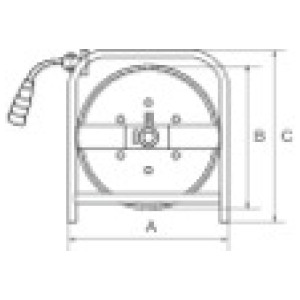

A [mm] 452.0
C [mm] 460.0
B [mm] 400.0
Velikost cevi [mm] 8x12
