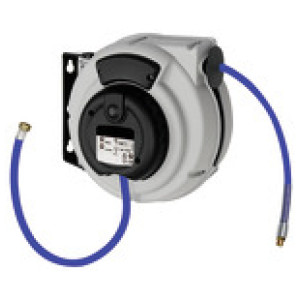

Vitel za gibko cev, PU cev Ø 12x8, G 1/4, cev dolžine 9 m
SKU: 113978RIE
EAN: 4047322389778
Hose reel for compressed air / water, PU hose Ø 12x8, Operating temperature max. 40 °C, PN max. 10 bar, G 1/4, Hose length 9 m
Hose reel with automatic rewind and spring assembly. Robust hose locking mechanism, impact resistant plastic casing. Swivel wall mount made made from coated steel. Easy mounting on the wall or ceiling.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Vitel za gibko cev, PU cev Ø 12x8, G 1/4, cev dolžine 9 m
Aplikacije: for compressed air and water
Material cevi: Polyurethane (PUR)
Navoj, izhod: G 1/4 male
Navoj, vhod: G 1/4 female

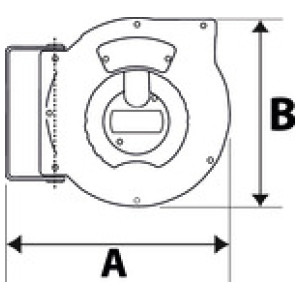

B [mm]: 275.0
A [mm]: 325.0
Material cevi: Polyurethane (PUR)
Navoj, izhod: G 1/4 male
Navoj, vhod: G 1/4 female
B [mm]: 275.0
A [mm]: 325.0
| Šifra | Dolžina cevi [m] | Max. obratovalni tlak [bar] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 113979RIE | 12 | 15 | 315.0 | 355.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 113978RIE | 9 | 10 | 275.0 | 325.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Hose reel for compressed air / water, PU hose Ø 12x8, Operating temperature max. 40 °C, PN max. 10 bar, G 1/4, Hose length 9 m
Hose reel with automatic rewind and spring assembly. Robust hose locking mechanism, impact resistant plastic casing. Swivel wall mount made made from coated steel. Easy mounting on the wall or ceiling.
Tehnični podatki in specifikacije
| Material cevi | Polyurethane (PUR) |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -5 |
| Max. delovna temperatura [°C] | 45 |
| Navoj, vhod | G 1/4 female |
| Zasučni kot [°] | 150 |
| Navoj, izhod | G 1/4 male |
| Aplikacije | for compressed air and water |
| Dolžina cevi [m] | 9 |
| A [mm] | 325.0 |
| B [mm] | 275.0 |
| Velikost cevi [mm] | 8x12 |
