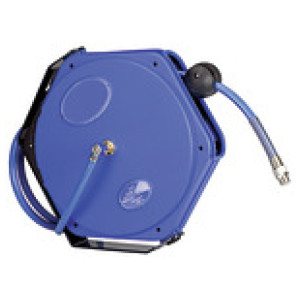

Vitel za gibko cev, PUR cev Ø 16x11, R 1/2 ET, dolžina 10 m
SKU: 113965RIE
EAN: 4047322067003
Hose reel for compressed air, Polyurethane hose ø 16x11, Operating temperature -20 °C to 60 °C, PN max. 12 bar, Hose length 10 m
Specially designed to ensure a high flow capacity.
Easy mounting on the wall or ceiling. Closed, rugged, impact-resistant housing made of POM, supply/outlet R 1/4 male thread and lightweight, hard-wearing, oil-resistant polyurethane hose.
Incl. 2 m feeder hose.
Povpraševanje
Material cevi: Braided polyurethane
Velikost cevi [mm]: 11x16

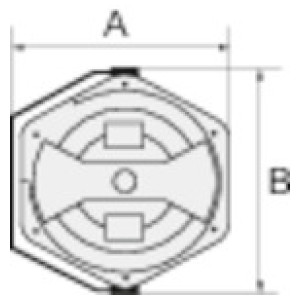

A [mm]: 395.5
B [mm]: 453.6
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 113965RIE | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
Opis
Hose reel for compressed air, Polyurethane hose ø 16x11, Operating temperature -20 °C to 60 °C, PN max. 12 bar, Hose length 10 m
Specially designed to ensure a high flow capacity.
Easy mounting on the wall or ceiling. Closed, rugged, impact-resistant housing made of POM, supply/outlet R 1/4 male thread and lightweight, hard-wearing, oil-resistant polyurethane hose.
Incl. 2 m feeder hose.
Tehnični podatki in specifikacije
| Material cevi | Braided polyurethane |
| Max. obratovalni tlak [bar] | 12 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 60 |
| Zasučni kot [°] | 300 |
| Aplikacije | for compressed air |
| Dolžina cevi [m] | 10 |
| A [mm] | 395.5 |
| B [mm] | 453.6 |
| Velikost cevi [mm] | 11x16 |
