Vitel za gibko cev, PUR cev fi 12x8, R 1/4 ET, dolžina 10 m
SKU: 113963RIE
EAN: 4047322250863

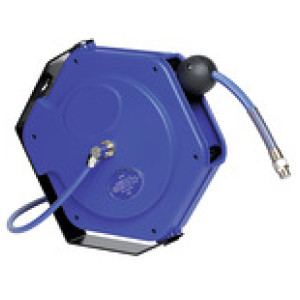

Hose reel for compressed air, Polyurethane hose ø 12x8, Operating temperature -20 °C to 60 °C, PN max. 16 bar, Hose length 10 m
Easy mounting on the wall or ceiling.
Closed, rugged, impact-resistant housing made of POM, supply/outlet R 1/4 male thread and lightweight, hard-wearing, oil-resistant polyurethane hose.
Incl. 2 m feeder hose (not for hose reel with hose length 7 m).
Povpraševanje
Material cevi: Braided polyurethane

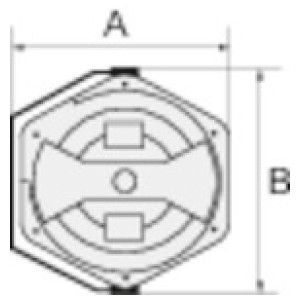

A [mm]: 364.0
B [mm]: 390.0
| Šifra | Velikost cevi [mm] | Dolžina cevi [m] | Max. obratovalni tlak [bar] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 113963RIE | 8x12 | 10 | 16 | 364.0 | 390.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 113964RIE | 8x12 | 7 | 16 | 313.3 | 341.7 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113962RIE | 8x12 | 16 | 16 | 395.5 | 453.6 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113961RIE | 9.5x13.5 | 14 | 12 | 395.5 | 453.6 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Hose reel for compressed air, Polyurethane hose ø 12x8, Operating temperature -20 °C to 60 °C, PN max. 16 bar, Hose length 10 m
Easy mounting on the wall or ceiling.
Closed, rugged, impact-resistant housing made of POM, supply/outlet R 1/4 male thread and lightweight, hard-wearing, oil-resistant polyurethane hose.
Incl. 2 m feeder hose (not for hose reel with hose length 7 m).
Tehnični podatki in specifikacije
| Material cevi | Braided polyurethane |
| Max. obratovalni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 60 |
| Zasučni kot [°] | 300 |
| Aplikacije | for compressed air |
| Dolžina cevi [m] | 10 |
| A [mm] | 364.0 |
| B [mm] | 390.0 |
| Velikost cevi [mm] | 8x12 |
