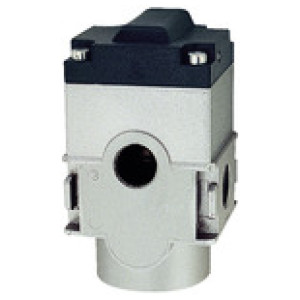

Vklopni ventil »multifix-mali«, Velikost 0, G 1/4
SKU: 100414RIE
EAN: 4047322123785
Start up valve »multifix-mini«, Size 0, G 1/4, Input pressure min. 2.5 bar, max. 16 bar, Medium / ambient temperature max. 60 °C

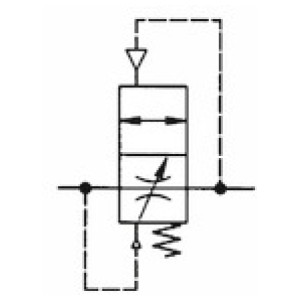

Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
The full cross-section of the regulator is opened at 50% of the input pressure.
With adjustable restrictor!
Obrestno financiranje
- 11,90 € x 6 mesecev
- 23,54 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 100414RIE | Čas dobave: Predvidoma 3 - 5 dni | 64,60 € |  |
Opis
Start up valve »multifix-mini«, Size 0, G 1/4, Input pressure min. 2.5 bar, max. 16 bar, Medium / ambient temperature max. 60 °C
Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
The full cross-section of the regulator is opened at 50% of the input pressure.
With adjustable restrictor!
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Min. vhodni tlak [bar] | 2.5 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 2250 |

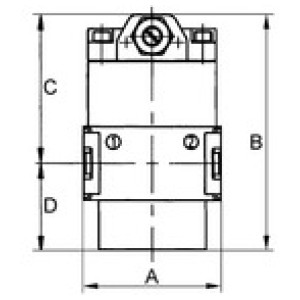

| A [mm] | 45.0 |
| B [mm] | 77.5 |
| C [mm] | 48.5 |
| D [mm] | 29.0 |
| Ohišje | Die-cast zinc |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
