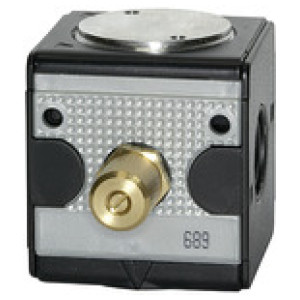

Vklopni ventil »multifix« z nastavljivim gumbomVel.1,G 1/4
SKU: 100626RIE
EAN: 4047322123808
Start up valve »multifix«, with adjustable throttle, Size 1, G 1/4, Input pressure 2 - 16 bar, Medium / ambient temp. max. 60 °C
Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
The full cross-section of the regulator is opened at 50% of the input pressure.
The filling time can be altered by turning the adjusting screw.
Obrestno financiranje
- 12,81 € x 6 mesecev
- 25,34 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

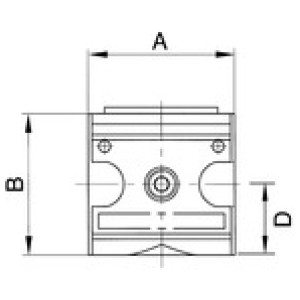

| Šifra | Navoj | Ohišje | Velikost | D [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100628RIE | G 3/4 | Aluminium | 5 | 52.0 | 99.7 | 104.0 | 16000 | Čas dobave 3 - 5 dni | 262,97 € |  | |
| 100627RIE | G 1/2 | Die-cast zinc | 3 | 35.1 | 68.8 | 71.6 | 3500 | Čas dobave 3 - 5 dni | 74,74 € | | |
| 100629RIE | G 1 | Aluminium | 5 | 52.0 | 99.7 | 104.0 | 16000 | Čas dobave 3 - 5 dni | 262,97 € | | |
| 100626RIE | G 1/4 | Die-cast zinc | 1 | 26.8 | 47.8 | 54.2 | 1100 | Čas dobave 3 - 5 dni | 69,80 € | | |
| 133143RIE | G 3/4 | Die-cast aluminium | 4 | 53.0 | 85.0 | 119.0 | 10000 | Čas dobave 3 - 5 dni | 221,33 € | | |
| 133144RIE | G 1 | Die-cast aluminium | 4 | 53.0 | 85.0 | 119.0 | 10000 | Čas dobave 3 - 5 dni | 221,33 € | |
Opis
Start up valve »multifix«, with adjustable throttle, Size 1, G 1/4, Input pressure 2 - 16 bar, Medium / ambient temp. max. 60 °C
Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
The full cross-section of the regulator is opened at 50% of the input pressure.
The filling time can be altered by turning the adjusting screw.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Min. vhodni tlak [bar] | 2 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 1100 |
| A [mm] | 47.8 |
| B [mm] | 54.2 |
| D [mm] | 26.8 |
| Ohišje | Die-cast zinc |
| Serija | multifix |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
