* slike so simbolične

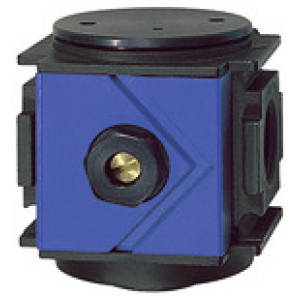

Vklopni ventil »variobloc«, Velikost 1, G 3/8
SKU: 100742RIE
EAN: 4047322168489
Start up valve »variobloc«, Size 1, G 3/8, Operating pressure 2 - 25 bar
For slow pressure build-up in pneumatic systems, e.g. after an emergency stop.
The valve opens to full flow at approximately 60% of the set operating pressure.
The filling time can be set by turning the adjusting screw. Used in combination with multi-piece service units.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Vklopni ventil »variobloc«, Velikost 1, G 3/8
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 3/8
Serija: variobloc
Navoj: G 3/8
Serija: variobloc

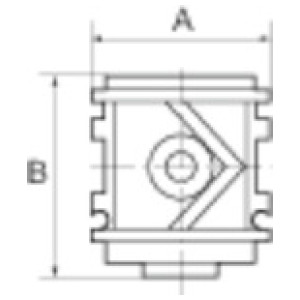

| Šifra | Navoj | Velikost | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 100744RIE | G 3/4 | 2 | 70.0 | 72.0 | 4200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100742RIE | G 3/8 | 1 | 48.0 | 54.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100741RIE | G 1/4 | 1 | 48.0 | 54.0 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100743RIE | G 1/2 | 2 | 70.0 | 72.0 | 3800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100745RIE | G 1 | 2 | 124.0 | 72.0 | 4200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Start up valve »variobloc«, Size 1, G 3/8, Operating pressure 2 - 25 bar
For slow pressure build-up in pneumatic systems, e.g. after an emergency stop.
The valve opens to full flow at approximately 60% of the set operating pressure.
The filling time can be set by turning the adjusting screw. Used in combination with multi-piece service units.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Min. obratovalni tlak [bar] | 2 |
| Max. obratovalni tlak [bar] | 25 |
| Velikost | 1 |
| Pretok [l/min] | 1400 |
| A [mm] | 48.0 |
| B [mm] | 54.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
