* slike so simbolične

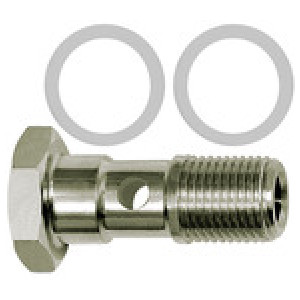

Votla vijak s teflonsko tesnilnim obročem, enojna G 1/4
SKU: 110445RIE
EAN: 4047322387460
Hollow screw with PTFE sealing ring, Single, G 1/4, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Čas dobave: Predvidoma 3 - 5 dni
16,57 €
| Šifra | Navoj | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 110444RIE | G 1/8 | 14 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,02 € |  | |
| 110447RIE | G 1/2 | 26 | 41.5 | Čas dobave: Predvidoma 3 - 5 dni | 39,67 € | | |
| 110445RIE | G 1/4 | 17 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 16,57 € | | |
| 110446RIE | G 3/8 | 21 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,80 € | |
Opis
Hollow screw with PTFE sealing ring, Single, G 1/4, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 15 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Delovni tlak pulzira [bar] | 10 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Navoj | G 1/4 |

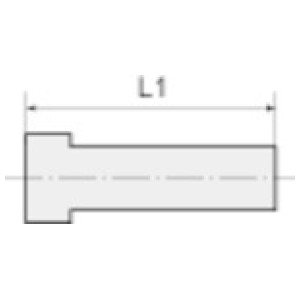

| L1 [mm] | 32.5 |
| a/f [mm] | 17 |
| Standardni navoj | DIN EN ISO 228-1 |
| Material | Stainless steel 1.4404 |
