Votli vijak, dva krat, G 3/8 slika
Votli vijak, dva krat, G 3/8 slika

* slike so simbolične

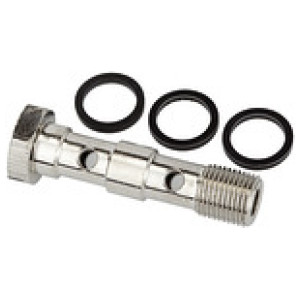

Votli vijak, dva krat, G 3/8

SKU: 108828RIE
EAN: 4047322285704

Hollow screw, Two times, G 3/8, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 70 °C, nickel-plated brass

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj a/f [mm] L1 [mm] Zaloga Cena Nakup Natisni
108828RIE G 3/8 19 58.1
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
108827RIE G 1/4 17 51.5
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
108826RIE G 1/8 14 44.5
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni

Opis

Hollow screw, Two times, G 3/8, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 70 °C, nickel-plated brass

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Tehnični podatki in specifikacije

Serija click-clock
Min. delovni tlak [bar] -0.98
Max. delovni tlak [bar] 16
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 70
Priporočena cev PA, PU
Rokav Hostaform
Vpenjalni obroč Stainless steel
Navoj G 3/8

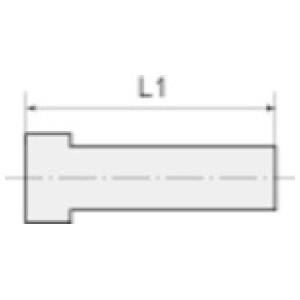

L1 [mm] 58.1
a/f [mm] 19
Material Nickel-plated brass
