Votli vijak, enotni, G 1/4 slika
 Votli vijak, enotni, G 1/4 slika

* slike so simbolične

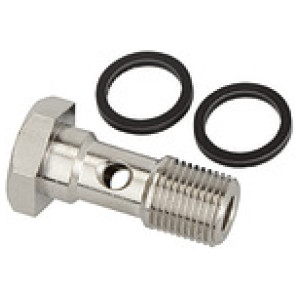

Votli vijak, enotni, G 1/4

SKU: 108824RIE
EAN: 4047322285667

Hollow screw, Single, G 1/4, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 70 °C, nickel-plated brass

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Čas dobave 3 - 5 dni
2,57 €
Primerjaj z ostalimi
Šifra Navoj a/f [mm] L1 [mm] Zaloga Cena Nakup Natisni
108823RIE G 1/8 14 28.0
Čas dobave 3 - 5 dni
1,52 € Natisni
108825RIE G 3/8 19 36.0
Čas dobave 3 - 5 dni
4,54 € Natisni
108824RIE G 1/4 17 33.0
Čas dobave 3 - 5 dni
2,57 € Natisni
108822RIE M5 8 17.5
Na zalogi
1,39 € Natisni

Opis

Hollow screw, Single, G 1/4, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 70 °C, nickel-plated brass

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Tehnični podatki in specifikacije

Serija click-clock
Min. delovni tlak [bar] -0.98
Max. delovni tlak [bar] 16
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 70
Priporočena cev PA, PU
Rokav Hostaform
Vpenjalni obroč Stainless steel
Navoj G 1/4

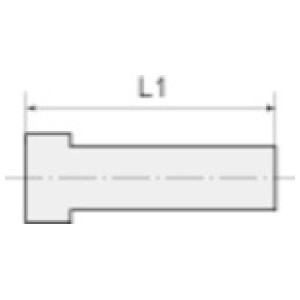

L1 [mm] 33.0
a/f [mm] 17
Material Nickel-plated brass
