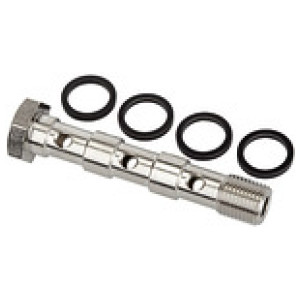

Votli vijak, trojni, G 1/8
SKU: 108829RIE
EAN: 4047322285711
Hollow screw, Three-fold, G 1/8, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 70 °C, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
5,78 €
| Šifra | Navoj | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 108831RIE | G 3/8 | 19 | 80.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,65 € |  | |
| 108830RIE | G 1/4 | 17 | 70.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,83 € | | |
| 108829RIE | G 1/8 | 14 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,78 € | |
Opis
Hollow screw, Three-fold, G 1/8, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 70 °C, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | G 1/8 |

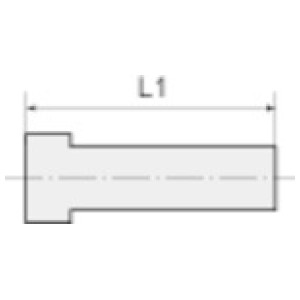

| L1 [mm] | 60.0 |
| a/f [mm] | 14 |
| Material | Nickel-plated brass |
