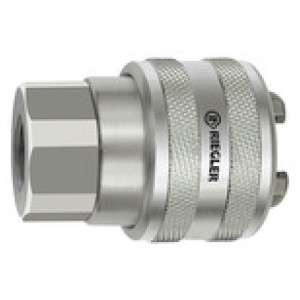

Vrtljiva varnosta spojka I.D.11,serija za težko obrem. G3/8 N.N.
SKU: 141798RIE
EAN: 4047322566797
Swivel safety coupling I.D.11, heavy-duty series, Steel, G 3/8 IT, two-stage, Operating pressure max. 25 bar, Temp. -20°C to 100°C
High quality, robust and long lifetime rotation secure coupling, heavy duty design.
It is suitable for an extremely rough conditions.
To make a secure connection between the coupling and plug, the plug-in nipple is fed into the coupling and rotated to the right until the mechanism clicks in audibly. The connection is uncoupled in which the plug-in nipple is rotated to the left and at the same time the release ring is pulled backwards. The plug-in nipple is captured upon ejection from the safety chamber and only released after another left or right turn by 90°.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, offshore, refineries.
Povpraševanje
Merjenje pretoka: at 6 bar and Δp = 0.5 bar
Navojni kos: Galvanised steel
Ohišje: Steel, QPQ treated
Povezava: G 3/8 IT
Rokav: Brass
Ventil: Brass
Vzmet: Stainless steel
Pretok: 2100 l/min (air)
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 141798RIE | G 3/8 IT | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 141799RIE | G 1/2 IT | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 141800RIE | G 3/4 IT | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Swivel safety coupling I.D.11, heavy-duty series, Steel, G 3/8 IT, two-stage, Operating pressure max. 25 bar, Temp. -20°C to 100°C
High quality, robust and long lifetime rotation secure coupling, heavy duty design.
It is suitable for an extremely rough conditions.
To make a secure connection between the coupling and plug, the plug-in nipple is fed into the coupling and rotated to the right until the mechanism clicks in audibly. The connection is uncoupled in which the plug-in nipple is rotated to the left and at the same time the release ring is pulled backwards. The plug-in nipple is captured upon ejection from the safety chamber and only released after another left or right turn by 90°.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, offshore, refineries.
Tehnični podatki in specifikacije
| DN | 11 |
| Povezava | G 3/8 IT |
| a/f [mm] | 36 |
| Delovni tlak | max. 25 bar / max. 16 bar when attaching / detaching |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 100 |
| Ohišje | Steel, QPQ treated |
| Tesnilo | NBR |
| Pretok | 2100 l/min (air) |
| Vzmet | Stainless steel |
| Rokav | Brass |
| Navojni kos | Galvanised steel |
| Ventil | Brass |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Dolžina [mm] | 75.0 |
