* slike so simbolične
Vrtljivi kotni priključek, G 1/2 o., zunanji premer za cev Ø 15
SKU: 158864RIE
EAN: 4047322635028

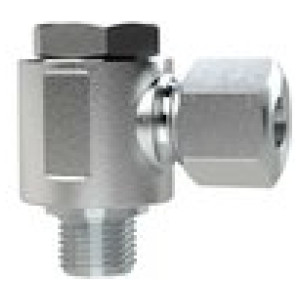

Pivoting angled fitting, G 1/2 o., Pipe exterior Ø 15 mm, a/f1 27, a/f2 27, Operating pressure max. 315 bar, galvanised steel
Banjo elbow, parallel male thread with O-ring, light type
Čas dobave 3 - 5 dni
27,34 €

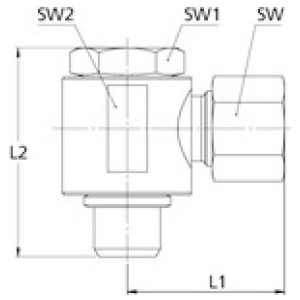

| Šifra | Navoj | O.D. cev [mm] | a/f [mm] | a/f 1 [mm] | a/f 2 [mm] | L1 [mm] | L2 [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 158867RIE | G 1 | 28 | 41 | 41 | 50 | 51.0 | 87.5 | 160 | Čas dobave 3 - 5 dni | 94,83 € |  | |
| 158860RIE | G 1/8 | 6 | 14 | 17 | 19 | 29.0 | 35.0 | 315 | Čas dobave 3 - 5 dni | 15,62 € | | |
| 158861RIE | G 1/4 | 8 | 17 | 19 | 22 | 30.5 | 42.5 | 315 | Čas dobave 3 - 5 dni | 16,74 € | | |
| 158863RIE | G 3/8 | 12 | 22 | 24 | 30 | 36.0 | 50.5 | 315 | Čas dobave 3 - 5 dni | 21,92 € | | |
| 158864RIE | G 1/2 | 15 | 27 | 27 | 36 | 39.0 | 52.0 | 315 | Čas dobave 3 - 5 dni | 27,34 € | | |
| 158862RIE | G 1/4 | 10 | 19 | 19 | 22 | 32.0 | 42.5 | 315 | Čas dobave 3 - 5 dni | 17,15 € | | |
| 158866RIE | G 3/4 | 22 | 36 | 32 | 41 | 47.0 | 72.0 | 160 | Čas dobave 3 - 5 dni | 59,68 € | | |
| 158865RIE | G 1/2 | 18 | 32 | 27 | 36 | 40.0 | 62.0 | 315 | Čas dobave 3 - 5 dni | 37,50 € | |
Opis
Pivoting angled fitting, G 1/2 o., Pipe exterior Ø 15 mm, a/f1 27, a/f2 27, Operating pressure max. 315 bar, galvanised steel
Banjo elbow, parallel male thread with O-ring, light type
Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | G 1/2 |
| O.D. cev [mm] | 15 |
| L1 [mm] | 39.0 |
| L2 [mm] | 52.0 |
| a/f [mm] | 27 |
| a/f 1 [mm] | 27 |
| a/f 2 [mm] | 36 |
| PN [bar] | 315 |
