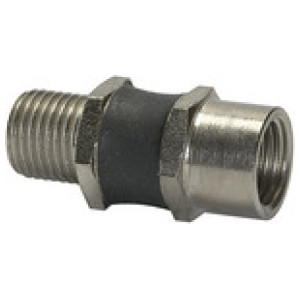

Vrtljivi sesalni prikluček »flexolink« G 1/4 IT, M10x1.25 ET
SKU: 108545RIE
EAN: 4047322200646
Pivoting suction pad attachment »flexolink«, G 1/4 IT, M10x1.25 ET, Steel / rubber, Bracket 12°, Bending moment 8 N
Flexible suction pad mounting
By flexing in all directions, this mounting allows the suction pad to better adapt itself to sloping workpieces.
Advantages:
- Very good adaptation to sloping workpiece surfaces
- Automatically resets into the initial position
- Vacuum-tight design with integrated protection against damage
Applications:
- Handling workpieces with sloping surfaces using large-area suction pads
- Handling large sheets of materials that may sag when lifted
- Can be used together with spring plungers to compensate for differing workpiece heights and uneven surfaces
Čas dobave: Predvidoma 3 - 5 dni
55,58 €
ali od 10,25 € / mesec
Izračunaj obrok
Obrestno financiranje
- 10,25 € x 6 mesecev
- 20,27 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj 2 | Upogibni moment [N] | L1 [mm] | L2 [mm] | Teža [g] | Vertikalna obremenitev [N] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 108546RIE | G 1/4 ET | 10 | 12.0 | 12.0 | 30.0 | 750 | Čas dobave: Predvidoma 3 - 5 dni | 53,09 € |  | |
| 108545RIE | M10x1.25 ET | 8 | 10.5 | 8.0 | 26.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 55,58 € | |
Opis
Pivoting suction pad attachment »flexolink«, G 1/4 IT, M10x1.25 ET, Steel / rubber, Bracket 12°, Bending moment 8 N
Flexible suction pad mounting
By flexing in all directions, this mounting allows the suction pad to better adapt itself to sloping workpieces.
Advantages:
- Very good adaptation to sloping workpiece surfaces
- Automatically resets into the initial position
- Vacuum-tight design with integrated protection against damage
Applications:
- Handling workpieces with sloping surfaces using large-area suction pads
- Handling large sheets of materials that may sag when lifted
- Can be used together with spring plungers to compensate for differing workpiece heights and uneven surfaces

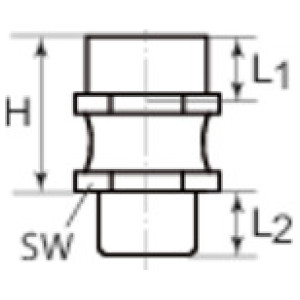

Tehnični podatki in specifikacije
| Material | Steel, rubber |
| L1 [mm] | 10.5 |
| L2 [mm] | 8.0 |
| a/f [mm] | 17 |
| H [mm] | 27.0 |
| Navoj 1 | G 1/4 IT |
| Navoj 2 | M10x1.25 ET |
| Teža [g] | 26.0 |
| Kot [°] | 12 |
| Upogibni moment [N] | 8 |
| Vertikalna obremenitev [N] | 500 |
