* slike so simbolične

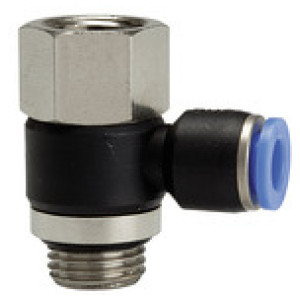

Vtični-L fiting »blue serija«, ki se vrti, G 1/2 i./o.
SKU: 109452RIE
EAN: 4047322265799
Push-in L-fitting »Blue Series«, rotating, G 1/2 i./o., for hose exterior Ø 10 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
11,65 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109438RIE | G 1/8 | 6 | 14 | 22.8 | 29.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,65 € |  | |
| 109453RIE | G 1/2 | 12 | 24 | 36.3 | 45.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,83 € | | |
| 109440RIE | G 1/8 | 10 | 17 | 30.2 | 29.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,99 € | | |
| 109446RIE | G 3/8 | 6 | 21 | 26.5 | 40.2 | Čas dobave: Predvidoma 3 - 5 dni | 7,97 € | | |
| 109436RIE | M5 | 6 | 10 | 21.9 | 19.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,55 € | | |
| 109442RIE | G 1/4 | 6 | 17 | 24.9 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,45 € | | |
| 109439RIE | G 1/8 | 8 | 14 | 25.2 | 29.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,93 € | | |
| 109450RIE | G 1/2 | 6 | 24 | 29.5 | 45.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,14 € | | |
| 109445RIE | G 1/4 | 12 | 21 | 32.4 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,99 € | | |
| 109447RIE | G 3/8 | 8 | 21 | 29.2 | 40.2 | Čas dobave: Predvidoma 3 - 5 dni | 8,25 € | | |
| 109443RIE | G 1/4 | 8 | 17 | 28.3 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,50 € | | |
| 109437RIE | G 1/8 | 4 | 14 | 22.3 | 29.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,65 € | | |
| 109449RIE | G 3/8 | 12 | 21 | 35.3 | 40.2 | Čas dobave: Predvidoma 3 - 5 dni | 9,17 € | | |
| 109444RIE | G 1/4 | 10 | 17 | 32.0 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,61 € | | |
| 109435RIE | M5 | 4 | 10 | 20.0 | 19.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,55 € | | |
| 109441RIE | G 1/4 | 4 | 17 | 24.1 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,66 € | | |
| 109448RIE | G 3/8 | 10 | 21 | 32.5 | 40.2 | Čas dobave: Predvidoma 3 - 5 dni | 8,64 € | | |
| 109451RIE | G 1/2 | 8 | 24 | 32.2 | 45.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,31 € | | |
| 109452RIE | G 1/2 | 10 | 24 | 35.5 | 45.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,65 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 1/2 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 35.5 |
| L2 [mm] | 45.5 |
| a/f [mm] | 24 |
| Material | Plastic and nickel-plated brass |
