* slike so simbolične

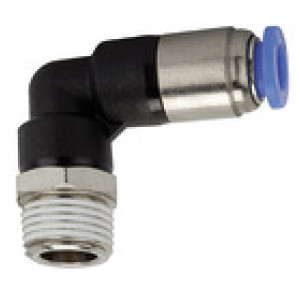

Vtični-L fiting »blue serija«, samozaporni, R 1/4 o.
SKU: 110198RIE
EAN: 4047322267199
Push-in L-fitting »Blue Series«, Self-locking, R 1/4 o., for hose exterior Ø 6 mm, pmax 10 barThe air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Čas dobave 3 - 5 dni
8,89 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110198RIE | R 1/4 | 6 | 14 | 26.7 | 29.4 | Čas dobave 3 - 5 dni | 8,89 € |  | |
| 110201RIE | R 3/8 | 8 | 17 | 31.0 | 33.0 | Čas dobave 3 - 5 dni | 11,18 € | | |
| 110200RIE | R 1/4 | 10 | 17 | 34.3 | 42.5 | Čas dobave 3 - 5 dni | 14,81 € | | |
| 110195RIE | R 1/8 | 4 | 10 | 23.8 | 31.0 | Čas dobave 3 - 5 dni | 5,59 € | | |
| 110197RIE | R 1/8 | 8 | 14 | 27.5 | 33.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 110196RIE | R 1/8 | 6 | 12 | 24.2 | 29.4 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
Opis
The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Navoj | R 1/4 |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 29.4 |
| L2 [mm] | 26.7 |
| a/f [mm] | 14 |
| Standardni navoj | ISO 7-1 |
| Material | Plastic and nickel-plated brass |
