* slike so simbolične

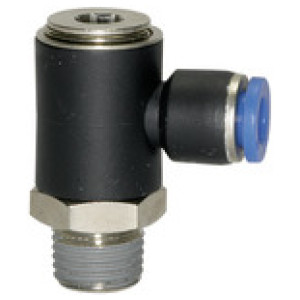

Vtični-L fiting »blue serija«, vrtljivi, R 1/4 o.
SKU: 109384RIE
EAN: 4047322198363
Push-in L-fitting »Blue Series«, rotating, R 1/4 o., for hose exterior Ø 8 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
7,61 €

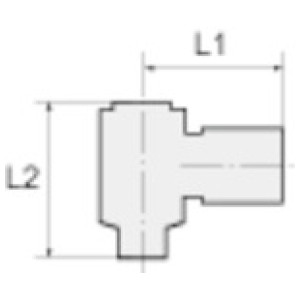

| Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 109382RIE | R 1/4 | 4 | 4 | 17 | 24.5 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € |  | |
| 109390RIE | R 1/2 | 8 | 10 | 24 | 34.7 | 45.2 | Čas dobave: Predvidoma 3 - 5 dni | 16,01 € | | |
| 109385RIE | R 1/4 | 6 | 10 | 17 | 29.9 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,37 € | | |
| 109379RIE | R 1/8 | 4 | 4 | 14 | 22.5 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,61 € | | |
| 109388RIE | R 3/8 | 8 | 10 | 20 | 31.9 | 40.7 | Čas dobave: Predvidoma 3 - 5 dni | 11,18 € | | |
| 109387RIE | R 3/8 | 8 | 8 | 20 | 28.5 | 40.7 | Čas dobave: Predvidoma 3 - 5 dni | 10,59 € | | |
| 109380RIE | R 1/8 | 4 | 6 | 14 | 21.5 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,05 € | | |
| 109389RIE | R 3/8 | 8 | 12 | 20 | 32.8 | 40.7 | Čas dobave: Predvidoma 3 - 5 dni | 11,43 € | | |
| 109383RIE | R 1/4 | 6 | 6 | 17 | 23.5 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,61 € | | |
| 109381RIE | R 1/8 | 4 | 8 | 14 | 24.5 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,16 € | | |
| 109386RIE | R 1/4 | 6 | 12 | 17 | 30.8 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,61 € | | |
| 109384RIE | R 1/4 | 6 | 8 | 17 | 26.5 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,61 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/4 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 26.5 |
| L2 [mm] | 38.0 |
| a/f [mm] | 17 |
| Šestkotna glava vtičnice [mm] | 6 |
| Material | Plastic and nickel-plated brass |
